NXP 74AVC4T245BQ: 4-bit Dual Supply Translating Transceiver

The NXP 74AVC4T245BQ is a high-performance, 4-bit dual supply translating transceiver designed to address the needs of modern high-speed bidirectional communication between different voltage domains. This integrated circuit is part of NXP's advanced AVC (Advanced Very-low-voltage CMOS) family, which is renowned for its low power consumption and high-speed signal processing capabilities.

This versatile transceiver is suitable for multi-voltage bidirectional level translation applications, including interfacing between microprocessors, microcontrollers, or other digital logic devices that operate at different voltage levels. It allows for seamless data transfer between a 1.2V to 3.6V V<sub>CCA side and a 1.2V to 5.5V V<sub>CCB side, ensuring compatibility across diverse systems.

The 74AVC4T245BQ features four bidirectional data channels, each with its own directional control input, which allows for independent direction control of each channel. This flexibility makes the device exceptionally well-suited for complex data bus management and interface tasks. Additionally, the device is equipped with an output enable (OE) input that can disable the outputs to avoid bus contention.

Key features of the 74AVC4T245BQ include:

• Wide V<sub>CCA and V<sub>CCB operation range (1.2V to 3.6V for V<sub>CCA, and 1.2V to 5.5V for V<sub>CCB)
• High-speed data transfer capabilities with over-voltage tolerant inputs and outputs
• Low ON resistance, providing minimal signal distortion
• Power-off protection on inputs and outputs, ensuring no excessive current is drawn if the device is powered down
• ESD protection exceeds JESD 22, ensuring device robustness
• Space-saving DHVQFN20 package for compact circuit board layouts

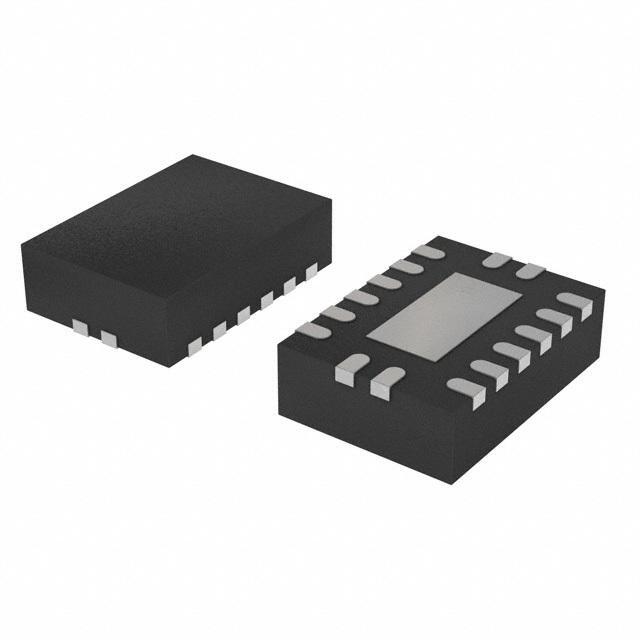

The 74AVC4T245BQ is available in a leadless DHVQFN20 package, which is not only space-efficient but also offers optimal thermal performance and reduced parasitic inductance for better high-frequency operation. This makes the transceiver an excellent choice for space-constrained applications such as smartphones, tablets, and other portable electronics.

With its combination of dual supply voltage capability, high-speed operation, and robust protection features, the NXP 74AVC4T245BQ is a reliable and efficient solution for modern electronic systems requiring voltage level translation.
