The NXP 74HCT4515N is a high-performance, CMOS integrated circuit that functions as a 4-to-16 line decoder or demultiplexer. This versatile component is designed to be used in a wide range of digital applications, from microprocessor systems to data distribution networks. With its advanced silicon-gate CMOS technology, it offers the functionality of the 4515B but with the low power consumption and high noise immunity characteristic of CMOS circuitry.

Featuring an active LOW enable input (E), the 74HCT4515N can be utilized in demultiplexing applications with ease. It also contains four binary control inputs (A, B, C, and D) that, when combined, can decode up to 16 mutually exclusive outputs. When the enable input is held high, all outputs remain in the inactive HIGH state.

Key specifications of the NXP 74HCT4515N include:

• Wide operating voltage range of 4.5V to 5.5V, making it suitable for interfacing with TTL levels.
• Low power dissipation, ensuring energy-efficient operation in your electronic designs.
• High noise immunity that is inherent to CMOS technology, providing reliable performance in electrically noisy environments.
• Output capability of up to 10 LSTTL loads, which allows for driving multiple devices.
• Standardized symmetrical output characteristics for balanced propagation delays.

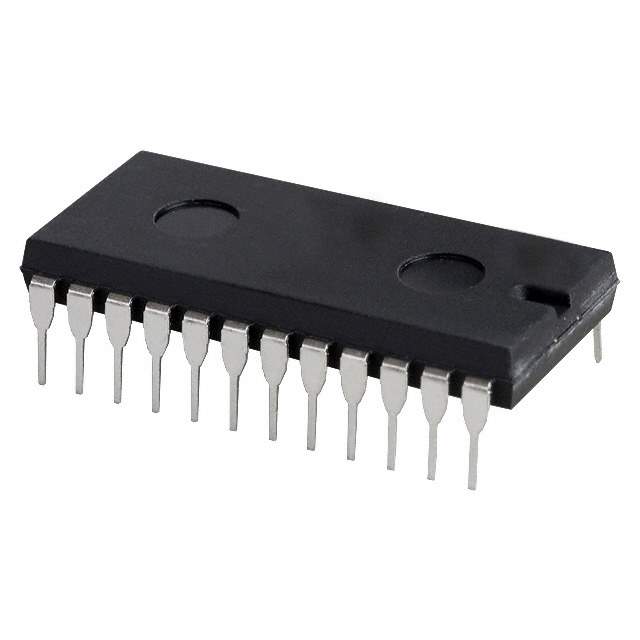

The NXP 74HCT4515N is housed in a DIP-24 (Dual In-line Package) enclosure, which makes it suitable for through-hole mounting, facilitating easy integration into a wide variety of circuit boards. Its robust design and industry-standard footprint make it an excellent choice for designers looking for a reliable and flexible decoding solution.

Whether you are developing complex digital systems or simple logic control circuits, the 74HCT4515N from NXP offers a combination of high performance, low power consumption, and functional versatility that can meet the demands of your innovative electronic projects.
