NXP 74LVC11PW/S400118 Triple 3-input AND Gate

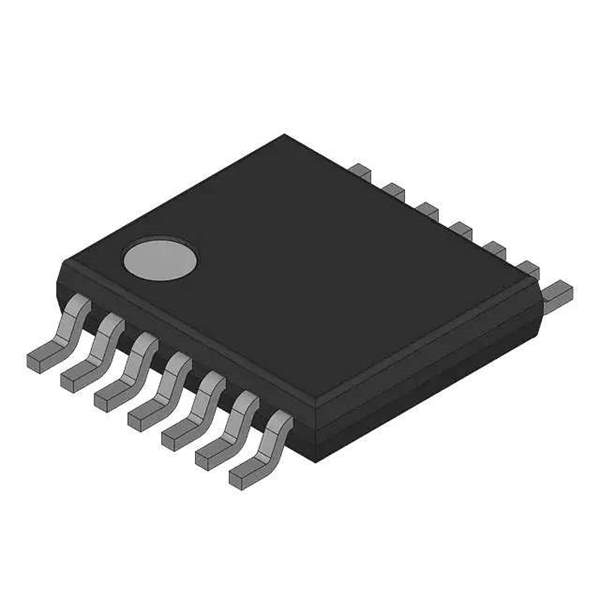

The NXP 74LVC11PW/S400118 is a high-performance, triple 3-input AND gate integrated circuit that is part of NXP Semiconductors' advanced 74LVC family. Designed for use in the latest high-speed logic applications, this device is housed in a slim TSSOP14 package, offering a compact footprint for space-constrained applications.

Constructed with an advanced 5V CMOS technology, the 74LVC11PW/S400118 provides robust logic operations with a supply voltage ranging from 1.65V to 5.5V. This wide operating range allows the device to interface with both 3.3V and 5V logic levels, making it highly versatile for mixed-voltage environments and for bridging between different logic families.

The device features three independent 3-input AND gates, which are essential components in digital circuits for combining multiple logic inputs to produce a single output. Each gate performs the logical AND function, outputting a high level only when all its inputs are high, providing precise control and decision-making capabilities in complex digital systems.

The 74LVC11PW/S400118 boasts an impressive propagation delay (tpd) of just 3.7ns at a 3.3V supply, ensuring high-speed operation that is critical for modern digital designs. Additionally, the device offers a low power consumption with an ICC of only 10μA maximum when disabled, making it an energy-efficient choice for battery-operated devices and power-sensitive applications.

Other key features of the NXP 74LVC11PW/S400118 include:

• 5V tolerant inputs for interfacing with higher voltage logic levels without the need for external level shifters.
• Input hysteresis for improved noise immunity, ensuring stable operation in electrically noisy environments.
• Compliance with JEDEC standard no. 7A, which ensures compatibility with industry standards for electronic components.
• ESD protection exceeds JESD 22, providing robustness against electrostatic discharge events.

Overall, the NXP 74LVC11PW/S400118 is a reliable and efficient solution for complex logic functions in a variety of applications, including computing, communication systems, and industrial controls. Its small form factor, high-speed performance, and compatibility with multiple logic levels make it an ideal choice for designers looking to optimize their digital circuit designs.
