Product Overview: BF1109R,215 by NXP Semiconductors

The BF1109R,215 is a high-performance N-channel silicon MOSFET manufactured by NXP Semiconductors, a trusted name in the electronics industry. This small-signal field-effect transistor is designed specifically for VHF and UHF applications, making it an ideal choice for a wide range of RF products and applications.

Key Features

• Dual-gate MOSFET: The BF1109R,215 features a dual-gate structure that provides excellent linearity and high input impedance, which is crucial for VHF and UHF applications.
• Low noise figure: With its low noise figure, this MOSFET ensures clear signal amplification with minimal distortion, making it suitable for sensitive RF reception equipment.
• High gain: The device offers high gain, which allows for better signal amplification, ensuring that even weak signals can be boosted effectively.
• Low power consumption: Designed with energy efficiency in mind, the BF1109R,215 operates with low power consumption, making it suitable for portable and battery-powered devices.

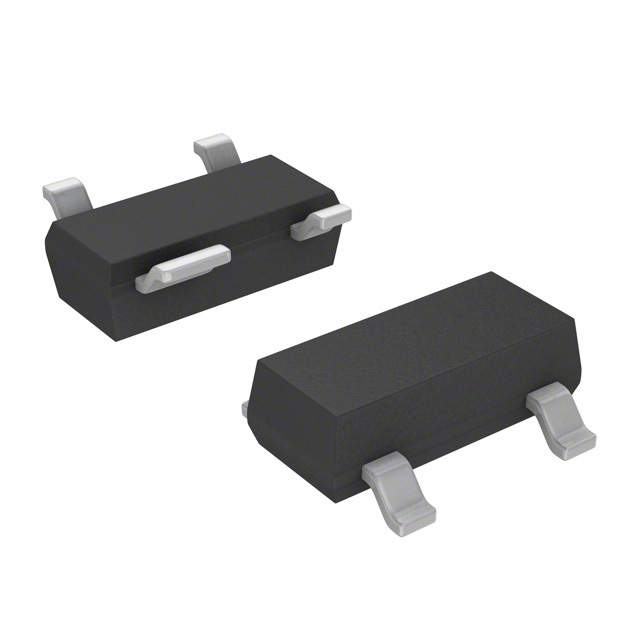

• SOT143B package: The transistor is housed in a compact SOT143B plastic surface-mounted package, which is conducive to space-saving designs and easy integration into various circuit layouts.

Applications

The versatility of the BF1109R,215 allows it to be used in a variety of RF applications, including but not limited to:

• RF amplifiers in telecommunication systems
• High-frequency oscillators
• Mixers and modulators
• Low-noise input stages for VHF/UHF tuners
• Industrial and commercial RF applications

With its combination of low noise, high gain, and energy efficiency, the BF1109R,215 by NXP Semiconductors is an excellent choice for designers and engineers looking to enhance their RF signal processing capabilities. Its robust construction and reliability make it a go-to component for achieving superior performance in demanding RF environments.
