The BFG520/XR,215 is a high-performance, NPN bipolar transistor designed and manufactured by NXP Semiconductors. This device is specifically engineered to meet the demanding requirements of contemporary RF front-end applications. With its exceptional features, the BFG520/XR,215 is an ideal choice for designers looking to enhance their systems with superior signal amplification capabilities.

Key Features

• High Transition Frequency (fT): The BFG520/XR,215 boasts a high transition frequency of 9 GHz, making it suitable for a wide range of high-frequency applications.
• Low Noise Figure: With a low noise figure, this transistor ensures minimal signal distortion, providing a clear and strong amplification of RF signals.
• High Gain: It offers high power gain, which allows for efficient signal amplification in various electronic circuits.
• Low Voltage Operation: The device operates at low voltages, making it compatible with low-power applications and contributing to energy-efficient designs.

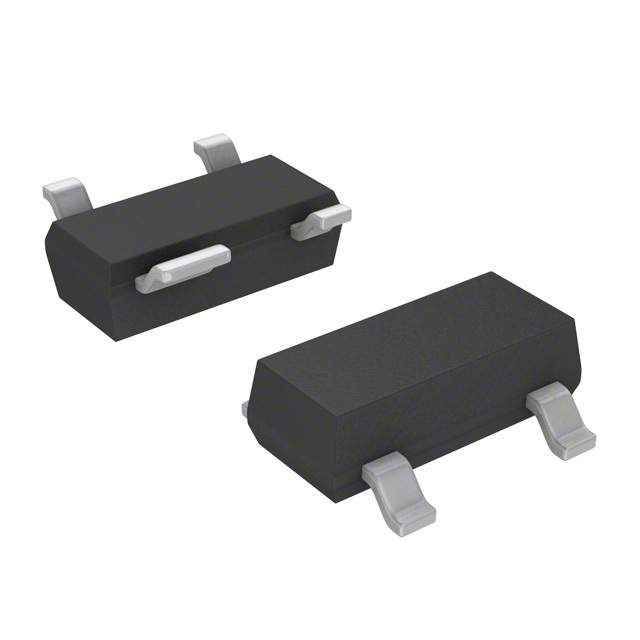

• Surface-Mount Package: The BFG520/XR,215 comes in a small SOT143B plastic surface-mount package, which is suitable for automated assembly processes and helps reduce the overall footprint of the circuit design.

Applications

The versatility of the BFG520/XR,215 makes it ideal for a variety of applications, including:

• RF amplifiers in mobile communication devices
• GPS receivers
• Oscillators and mixers
• Low-noise amplifiers in satellite systems
• Wireless LAN and Bluetooth systems

Quality and Reliability

NXP Semiconductors is renowned for their commitment to quality and reliability, and the BFG520/XR,215 is no exception. It is manufactured with the highest industry standards, ensuring consistent performance and durability for the end-user. This product is designed to withstand the rigors of modern electronic devices, providing a reliable solution for RF amplification needs.

Conclusion

In conclusion, the BFG520/XR,215 from NXP Semiconductors is a top-tier RF transistor that offers excellent performance for high-frequency applications. Its high transition frequency, low noise figure, and high gain make it a compelling choice for designers looking to create sophisticated and efficient RF systems. The compact surface-mount package further enhances its appeal by enabling sleeker and more integrated circuit designs.
