Product Overview: IP4355CX6/LF,135

The IP4355CX6/LF,135 is a high-performance ESD protection device from NXP Semiconductors, designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and robust solution is ideal for protecting high-speed data lines and signal lines in various applications, including mobile phones, portable electronics, and other digital devices.

Key Features

• ESD Protection: The IP4355CX6/LF,135 offers exceptional protection against ESD, exceeding the IEC 61000-4-2 standard (Level 4). This ensures that the device can withstand ESD strikes of up to ±15 kV (air discharge) and ±8 kV (contact discharge), providing a high level of security for sensitive circuits.
• Low Capacitance: With its ultra-low capacitance design, this product is particularly suitable for protecting high-speed data lines without compromising signal integrity. This makes it an excellent choice for applications such as USB 2.0, HDMI, and other high-speed interfaces.

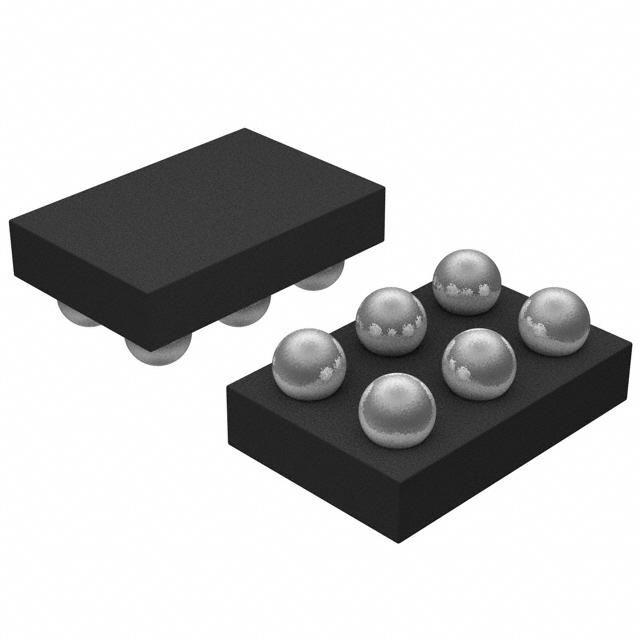

• Compact Package: The IP4355CX6/LF,135 is housed in a small 6-lead, ultra-thin DFN package (1.45 x 1.0 x 0.5 mm), which allows for easy integration into space-constrained designs without the need for significant PCB real estate.
• Low Clamping Voltage: This device features a low clamping voltage, which ensures that even when an ESD event occurs, the voltage stress on the protected components remains minimal, thereby enhancing their longevity and reliability.

Applications

• Mobile Phones and Smart Devices
• Portable Electronics
• Computing and Peripherals
• Consumer Electronics
• High-Speed Data Interfaces

With its combination of high-level ESD protection, low capacitance, and a compact footprint, the IP4355CX6/LF,135 from NXP Semiconductors is an ideal choice for designers looking to enhance the durability and performance of their electronic products. By integrating this ESD protection device, manufacturers can ensure that their devices are not only resilient in the face of transient voltage events but also maintain the high-speed signal quality required for today's digital applications.
