Products specifications

Manufacturer NXP
Win Source Part Number 1193252-KMA200
Manufacturer Homepage www.nxp.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KMA200 CAD Model

Description

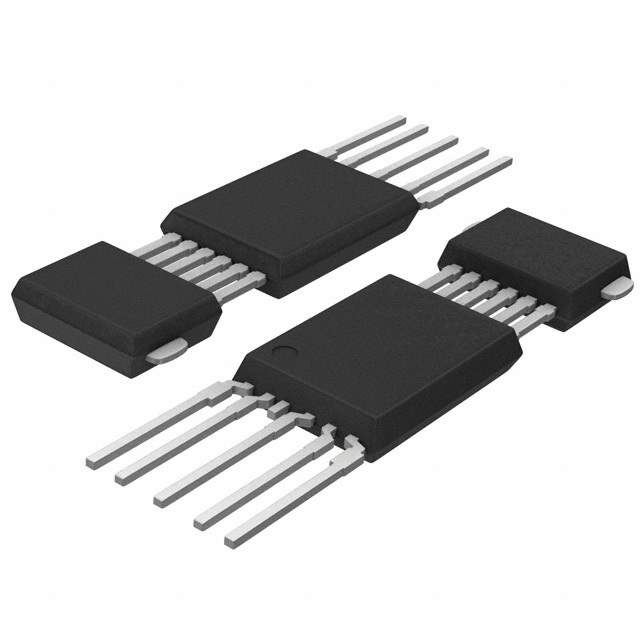

The NXP KMA200 is a cutting-edge magnetic angle sensor designed for high-precision angular measurement applications. This sensor combines advanced sensor technologies with robust design to deliver accurate and reliable performance in a variety of industrial, automotive, and consumer electronics applications.

Key Features:

  • High Precision: The KMA200 sensor is capable of measuring angular positions with a high degree of accuracy, making it suitable for applications requiring precise control.
  • Wide Measurement Range: It offers a full 360-degree measurement range, allowing it to monitor the complete rotation of a magnetic field.
  • Temperature Compensated: The device includes built-in temperature compensation, ensuring stable performance across a wide range of operating conditions.
  • Digital Signal Processing: Integrated digital signal processing provides clean and reliable signals for easier interpretation and use in control systems.
  • Programmable: Users can program the sensor for specific application needs, which adds flexibility and reduces time-to-market for new products.

Applications:

  • Automotive steering angle and pedal position sensing
  • Industrial robotics and motor control
  • Consumer electronics for precise motion detection
  • Renewable energy systems such as wind turbine angle sensing

Technical Specifications:

The KMA200 operates on a supply voltage ranging from 4.5V to 5.5V and offers an output that is proportional to the cosine and sine of the angle of a magnetic field applied parallel to the surface of the chip. It is encapsulated in a small TSSOP16 package, making it easy to integrate into various designs without significant space concerns.

Conclusion:

The NXP KMA200 magnetic angle sensor is a versatile and robust solution for high-precision angle measurement. Its combination of features, including high accuracy, wide measurement range, temperature compensation, and programmability, make it an ideal choice for developers and engineers looking to enhance the performance and reliability of their systems.
