The NXP LPC11U24FHI33/301 is a powerful and versatile microcontroller that is part of the LPC11U00 series designed for embedded applications. This 32-bit MCU is built around a high-performance ARM Cortex-M0 processor core, making it ideal for a wide range of industrial, consumer, and general-purpose applications.

Core Features

• Processor: ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
• Memory: Comes with 32 KB of on-chip flash memory and 8 KB of SRAM, providing ample space for complex applications and software.

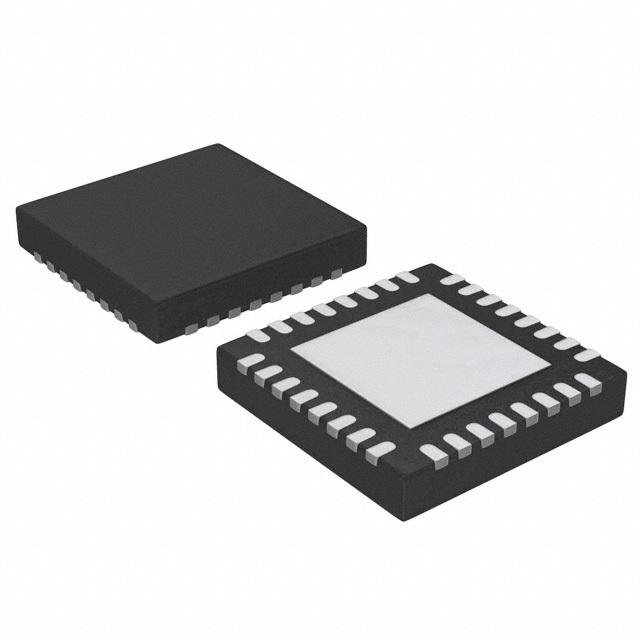

• Package: Available in a compact 33-pin HVQFN package, making it suitable for space-constrained applications.

Connectivity and I/O

The LPC11U24FHI33/301 offers a range of connectivity options:

• USB 2.0 Full-Speed Device Controller with integrated PHY for serial communication.
• Serial interfaces including UART, I2C, and SPI for easy connection to peripherals and other microcontrollers.
• Up to 28 General Purpose I/O (GPIO) pins for interfacing with sensors, actuators, and other electronic components.

Power Efficiency and Analog Features

This MCU is designed with power efficiency in mind, featuring multiple power-saving modes to extend battery life in portable devices. It also includes several analog peripherals:

• One Analog-to-Digital Converter (ADC) with 8 channels and up to 10-bit resolution.
• Windowed Watchdog Timer (WWDT) and a 10-bit Digital-to-Analog Converter (DAC) for analog output.

Development and Debugging

For development and debugging, the LPC11U24FHI33/301 supports In-System Programming (ISP) and In-Application Programming (IAP) capabilities, along with integrated Serial Wire Debug (SWD). These features enable developers to rapidly prototype and test their applications, ensuring a smooth development process.

Applications

With its robust feature set, the NXP LPC11U24FHI33/301 is an excellent choice for applications such as:

• Industrial automation and control systems.
• Consumer electronics and handheld devices.
• Internet of Things (IoT) devices and smart sensors.
• Medical devices and healthcare equipment.

The NXP LPC11U24FHI33/301 microcontroller strikes a balance between performance, power consumption, and peripheral integration, making it a go-to solution for designers looking for a cost-effective yet powerful MCU.
