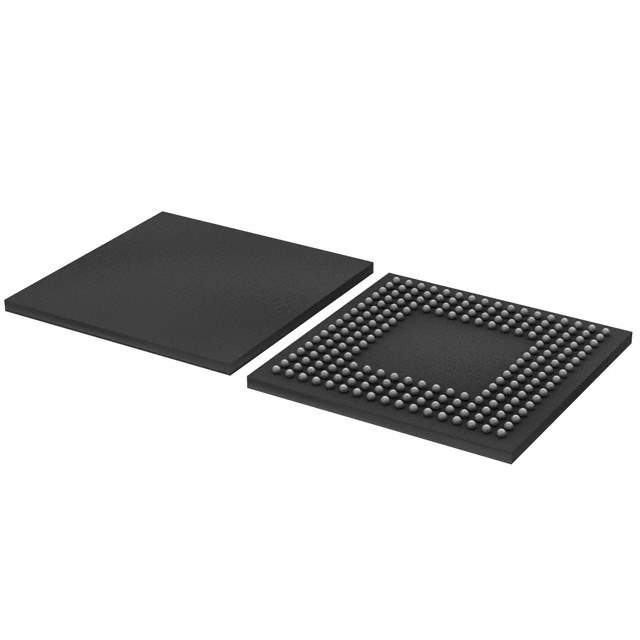

NXP LPC1788FET208 Microcontroller

The NXP LPC1788FET208 is a high-performance microcontroller designed for embedded applications requiring a rich feature set and high levels of integration. It is based on the ARM Cortex-M3 processor, which delivers exceptional efficiency and speed, making it ideal for a wide range of industrial, consumer, and communication applications.

This powerful microcontroller operates at a frequency of up to 120 MHz and features a large on-chip memory including 512 KB of flash memory and 96 KB of SRAM, ensuring ample space for complex software applications and data storage. The flash memory also includes an accelerator to ensure high-speed operation.

Key Features:

• Core: ARM Cortex-M3 processor, running up to 120 MHz
• Memory: 512 KB of flash memory, 96 KB of SRAM
• High-speed USB 2.0 Device/Host/OTG interface
• 10/100 Ethernet MAC with MII/RMII interface
• Graphic LCD controller with a dedicated DMA controller for high-speed graphics rendering
• Multiple serial interfaces including UART, I2C, SPI, CAN, and I2S
• External Memory Controller (EMC) supporting SRAM, NOR, NAND, and SDRAM
• 12-bit Analog-to-Digital Converter (ADC) and 10-bit Digital-to-Analog Converter (DAC)
• General Purpose DMA controller for high-speed data transfers
• Up to 165 General Purpose I/O (GPIO) pins for versatile peripheral functions

The LPC1788FET208 is also equipped with an array of connectivity options. The inclusion of a 10/100 Ethernet MAC with both MII and RMII interfaces enables networked applications, while the USB 2.0 interface supports device, host, and OTG capabilities, providing flexible connection options to other peripherals or USB hosts.

For graphical user interfaces, the integrated Graphic LCD controller is a standout feature, supporting STN and TFT panels. This, combined with the dedicated DMA controller, allows for smooth and responsive display capabilities, which are essential for human-machine interfaces (HMIs), point-of-sale systems, or any application requiring a graphical display.

The LPC1788FET208 also offers robust design flexibility with its External Memory Controller, which supports a variety of memory types, and abundant GPIO pins that can be configured for a multitude of uses. The comprehensive set of serial interfaces ensures easy expansion and communication with other devices in a system.

With its rich set of features and high performance, the NXP LPC1788FET208 microcontroller is an ideal solution for complex and demanding applications that require a versatile, high-speed microcontroller with extensive communication and interface capabilities.
