NXP LPC2132FHN64,557 Microcontroller

The NXP LPC2132FHN64,557 is a robust microcontroller that is part of the widely acclaimed LPC2100 series, known for their high performance and low power consumption. This particular microcontroller is designed to cater to a multitude of embedded applications, ranging from industrial control systems to complex medical devices.

At the heart of the LPC2132FHN64,557 is a 32-bit ARM7TDMI-S CPU, which delivers exceptional processing capabilities while maintaining efficiency. The microcontroller operates at a maximum frequency of 60 MHz, which provides a balanced trade-off between power consumption and processing speed, making it an ideal choice for battery-powered or energy-sensitive applications.

One of the standout features of the LPC2132FHN64,557 is its 128 KB of on-chip Flash memory, which provides ample space for application code and data storage. Additionally, it is equipped with 16 KB of static RAM (SRAM), which ensures smooth and fast data handling for real-time operations.

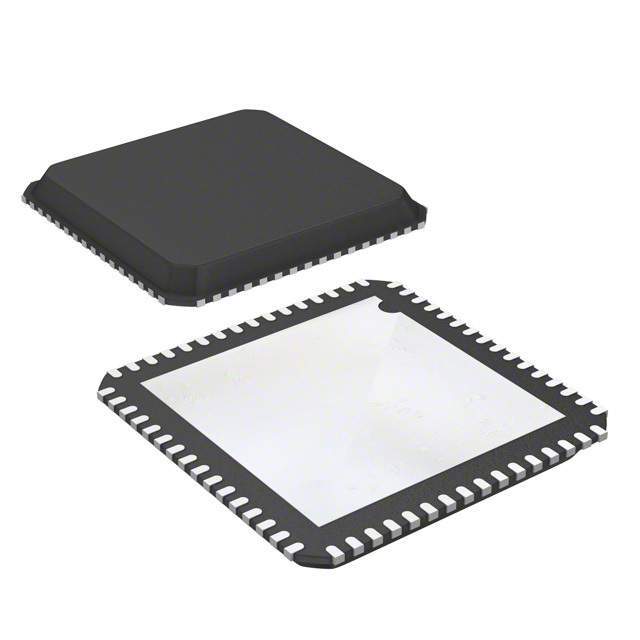

The microcontroller comes in a compact 64-pin HVQFN package, which not only saves valuable board space but also ensures that the device can be integrated into space-constrained designs without compromising on functionality. The LPC2132FHN64,557 also offers a wide range of peripherals, including:

• Two 32-bit timers
• Two UARTs
• Two I2C-bus interfaces
• Two SPI/SSP serial interfaces
• Four capture and four compare channels
• Fast GPIO ports with configurable pull-up/down resistors

Furthermore, this microcontroller supports a variety of serial communications protocols, which makes it highly versatile for integrating into different systems and for connecting with other devices. Its in-system programmability feature allows for firmware updates in the field, ensuring that the device can adapt to new requirements and standards without the need for a complete hardware overhaul.

To ensure reliability and stability, the LPC2132FHN64,557 operates over an industrial temperature range and includes a built-in watchdog timer to prevent system failures. Additionally, it features multiple power-saving modes, allowing developers to optimize the power consumption for their specific application needs.

In summary, the NXP LPC2132FHN64,557 microcontroller is a powerful and flexible solution for a wide array of embedded systems, offering a perfect blend of performance, memory, and peripherals, all within a space-saving and power-efficient design.
