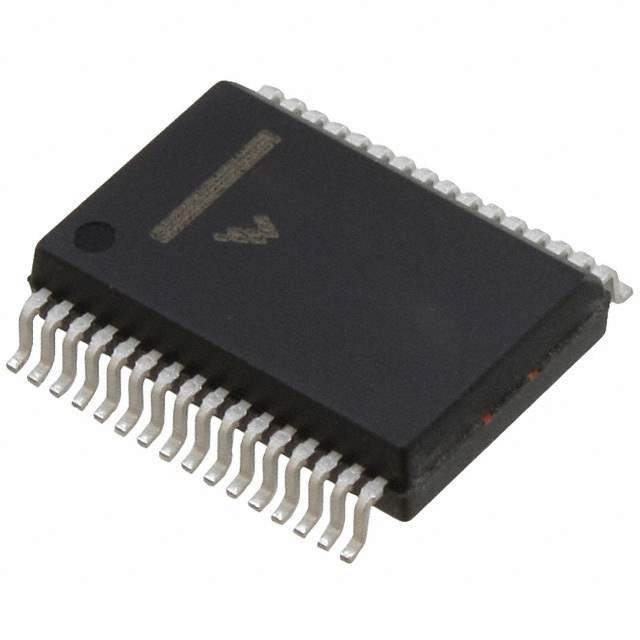

Introducing the MC33972DWBR2 from NXP

The MC33972DWBR2 is a versatile switch detection interface designed by NXP Semiconductors to cater to the needs of automotive and industrial applications. This advanced device is engineered to interface with multiple switch contacts, making it an ideal solution for systems requiring a high level of integration for switch monitoring.

Key Features

• Multiple Switch Inputs: The MC33972DWBR2 can monitor up to 22 switch contacts, providing a comprehensive solution for systems with numerous input requirements.
• Robust Design: With an operating temperature range from -40°C to 125°C, this device is built to withstand harsh environments, ensuring reliable performance in a variety of conditions.
• Enhanced Diagnostics: It includes sophisticated diagnostics capabilities to detect open and short circuits, ensuring immediate response to system faults and enhancing overall safety.
• Flexible Interface: The device supports both SPI and parallel interface options, offering flexibility in system design and ease of integration with a wide range of microcontrollers.
• Wet/Dry Configuration: It can be configured for wet or dry contact applications, providing versatility in accommodating different types of switch contacts.

Applications

The MC33972DWBR2 is particularly suited for automotive applications such as body control modules, instrument cluster switch monitoring, and steering wheel switch interfaces. Additionally, it can be effectively utilized in industrial control systems requiring robust switch monitoring capabilities.

Technical Specifications

• Supply Voltage: 5.5 V to 26.5 V
• 22 switch inputs with serial peripheral interface (SPI)
• Integrated wetting current for switch contacts
• End of diagnostics support
• Package: SOIC-32 wide body

The MC33972DWBR2 by NXP is a comprehensive solution for systems demanding high switch input integration with reliable performance. Its robust design and enhanced diagnostic features make it a go-to choice for automotive and industrial applications requiring precision and durability.
