Overview of NXP MC9S08MM128CLK Microcontroller

The NXP MC9S08MM128CLK is a feature-rich microcontroller designed to cater to a wide range of applications, particularly in the industrial and automotive sectors. This device is part of the MC9S08 family of 8-bit microcontrollers that are well-known for their robustness, low power consumption, and flexibility.

Key Features

• Core: The microcontroller is built around a high-performance S08 core, operating at a maximum frequency of 40 MHz. This core is capable of delivering up to 20 MIPS (Million Instructions Per Second), ensuring efficient processing for time-sensitive tasks.
• Memory: It comes equipped with 128 KB of flash memory and 8 KB of RAM, providing ample space for complex programs and sufficient volatile memory for runtime operations.
• Integration: The device includes a variety of integrated modules that enhance its functionality, such as an ADC (Analog-to-Digital Converter), a DAC (Digital-to-Analog Converter), and multiple communication interfaces like I2C, SPI, and UART, which are essential for interfacing with other components and peripherals.
• Timers: Advanced timer functions including a Real-Time Counter, two 2-channel and one 6-channel Timer/PWM (Pulse Width Modulation) modules are available, which are crucial for precise timing and control applications.
• Power Efficiency: The MC9S08MM128CLK is designed for power-sensitive applications with features such as multiple power-saving modes, which allow for reduced power consumption during idle periods.

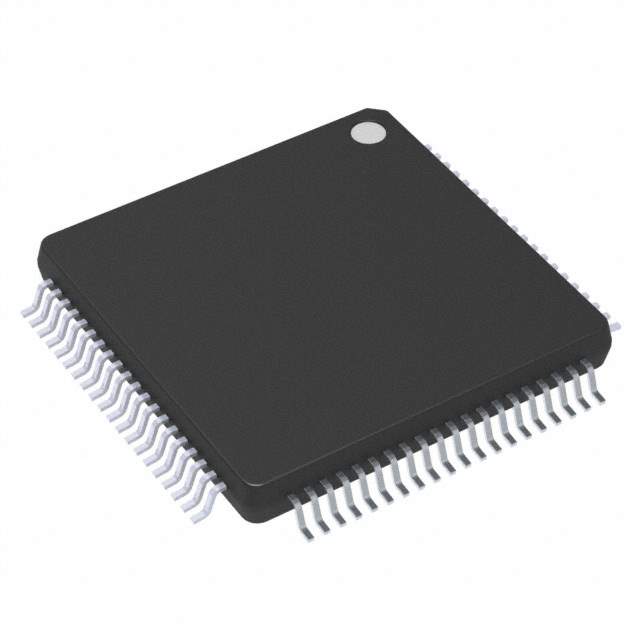

• Package: The microcontroller is offered in an 80-pin LQFP (Low-Profile Quad Flat Package), ensuring a compact footprint for space-constrained applications.

Applications

The versatile nature of the MC9S08MM128CLK makes it suitable for a range of applications, including but not limited to:

• Industrial control systems
• Automotive control units
• Consumer electronics
• Home automation
• Medical devices

With its robust set of features and extensive integration capabilities, the NXP MC9S08MM128CLK stands out as a microcontroller that can drive innovation and efficiency in your next embedded system project.
