NXP MC9S08PA16AVLD Microcontroller

The NXP MC9S08PA16AVLD microcontroller is a versatile and powerful component designed for a wide array of applications requiring efficient embedded control. Based on the high-performance S08 core, this microcontroller operates at a maximum frequency of 20 MHz, providing the computational power needed for complex tasks in a compact and energy-efficient package.

Key Features:

• CPU: 8-bit S08 central processing unit (CPU) with up to 20 MHz frequency for swift data processing and task management.
• Flash Memory: 16 KB of on-chip flash memory, enabling robust program storage and offering flexibility for software updates.
• RAM: 2 KB of random-access memory (RAM) to support variable storage and efficient data handling.
• I/O Ports: Multiple general-purpose input/output (GPIO) ports for versatile connectivity options and interfacing with peripheral devices.
• Timers: Integrated timers including an 8-channel, 16-bit timer/pulse-width modulator (TPM) for precise event timing and PWM applications.
• Analog-to-Digital Converter: 12-channel, 12-bit analog-to-digital converter (ADC) for accurate conversion of analog signals to digital data.
• Voltage Range: Operates within a 2.7V to 5.5V voltage range, accommodating various power supply configurations.
• Temperature Range: Industrial temperature range from -40°C to +85°C, ensuring reliable operation in challenging environmental conditions.

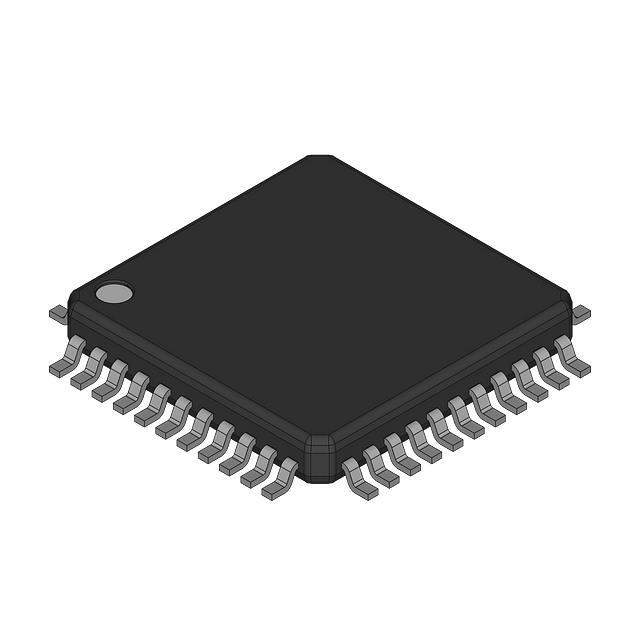

• Packaging: Available in a 44-pin LQFP package, allowing for a compact footprint on printed circuit boards (PCBs).

The MC9S08PA16AVLD is designed with an emphasis on ease-of-use and flexibility. It includes an on-chip debug module to facilitate development and debugging, as well as an array of peripherals that make it suitable for applications in industrial control, consumer electronics, automotive systems, and more. With its robust feature set and NXP's commitment to quality, this microcontroller is an excellent choice for designers looking to create reliable and efficient embedded systems.
