The NXP MC9S08PA60VQH is a versatile and powerful 8-bit microcontroller designed to cater to a wide range of applications, from industrial control systems to consumer electronics. This microcontroller is part of the S08 family, which is well-known for its high degree of integration, exceptional performance, and low power consumption.

Key Features

• CPU: 8-bit S08 core, up to 20 MHz HCS08 CPU at 5V
• Flash Memory: 60KB, allowing ample space for complex programs and software.
• RAM: 4KB, providing sufficient working memory for data processing.
• EEPROM: 256 Bytes, ideal for storing configuration settings and small amounts of data that need to be preserved across power cycles.
• ADC: 12-channel, 10-bit analog-to-digital converter, enabling the microcontroller to interface with analog sensors and devices.
• Timers: Two 2-channel and one 6-channel timer/pulse-width modulators (TPM) for precise event timing and waveform generation.
• Communication Interfaces: Multiple communication options including I²C, SPI, and SCI for versatile connectivity.
• Supply Voltage: 2.7V to 5.5V operating range to accommodate various power supply designs.

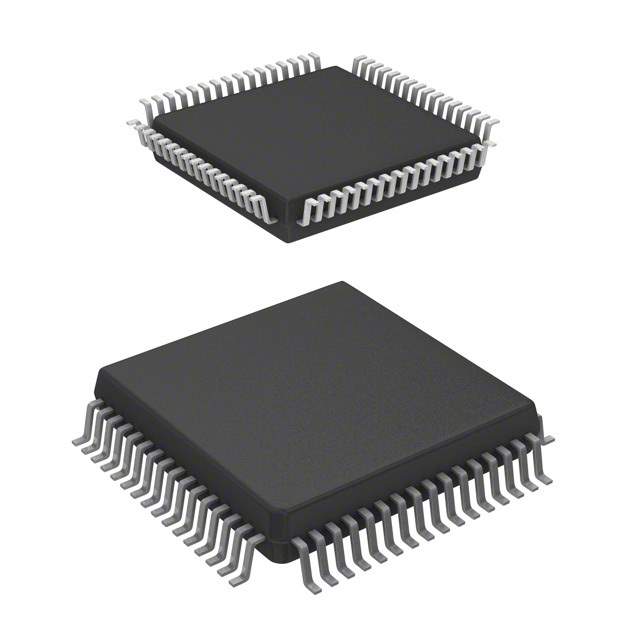

• Package: 64-QFP (Quad Flat Package), which is suitable for surface-mount technology and provides a compact footprint for space-constrained applications.
• Temperature Range: -40°C to +85°C operating temperature range, ensuring reliable performance in harsh environments.

Applications

The MC9S08PA60VQH microcontroller is ideal for an array of applications due to its robust feature set. It is particularly well-suited for:

• Industrial control systems
• Automotive control units
• Home automation
• Smart sensors and instrumentation
• Consumer electronics

With its integrated features and flexible I/O options, the NXP MC9S08PA60VQH microcontroller is a solid choice for designers looking to develop sophisticated and reliable products in a competitive market.
