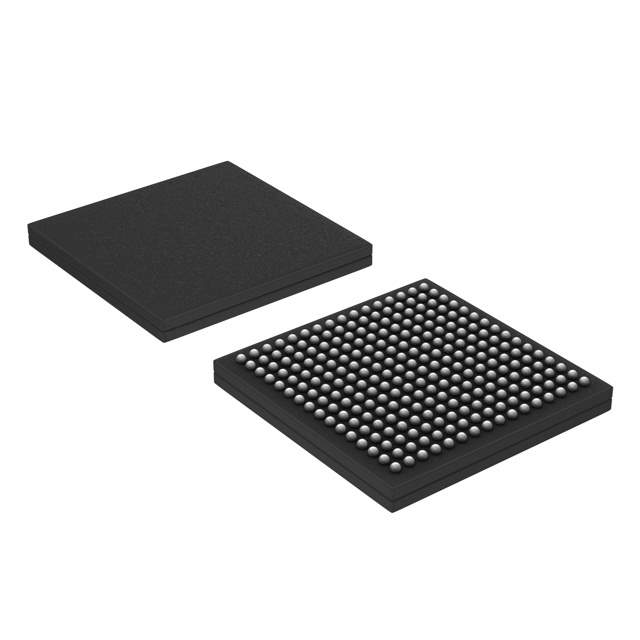

NXP MK70FN1M0VMJ15 Microcontroller Overview

The NXP MK70FN1M0VMJ15 is a high-performance microcontroller designed to meet the demanding needs of complex embedded applications. This device is part of the Kinetis K70 family, which is well-known for its advanced features, including a rich set of peripherals, low power consumption, and robust security options.

Core and Memory

At the heart of the MK70FN1M0VMJ15 is an ARM Cortex-M4 core, which operates at speeds of up to 150 MHz. The core also includes a floating-point unit (FPU) for efficient processing of computational tasks. The microcontroller is equipped with 1MB of flash memory and 128KB of SRAM, providing ample space for application code and data storage.

Connectivity and Communication

Designed with versatility in mind, the MK70FN1M0VMJ15 offers a wide range of communication interfaces. These include multiple UART, SPI, and I2C modules, as well as USB 2.0 Full-speed and High-speed OTG capabilities. Additionally, the device features Ethernet and CAN interfaces for networking and automotive applications, respectively.

Advanced Peripherals

The MK70FN1M0VMJ15 is packed with a variety of peripherals to support a broad spectrum of functionalities. It includes a Graphic LCD controller for rich user interfaces, a touch-sensing interface for capacitive touch applications, and an analog-to-digital converter (ADC) with high precision and speed. The microcontroller also has a digital-to-analog converter (DAC), multiple timers, and a real-time clock.

Security and Reliability

Security is a critical aspect of modern embedded systems, and the MK70FN1M0VMJ15 addresses this with features like hardware encryption, secure boot, and a random number generator. These elements ensure data protection and secure communication. Additionally, the device has been designed with reliability in mind, featuring a memory protection unit (MPU) and error-correcting code (ECC) memory for increased system integrity.

Energy Efficiency

NXP's MK70FN1M0VMJ15 is optimized for energy efficiency, which is essential for battery-powered and energy-sensitive applications. It includes flexible power modes, allowing the system to balance performance and power consumption according to the application's requirements.

With its robust feature set and scalable performance, the NXP MK70FN1M0VMJ15 microcontroller is an excellent choice for industrial control, medical devices, smart energy solutions, and many other sophisticated embedded systems.
