Products specifications Report Issue?

Categories Integrated Circuits (ICs)

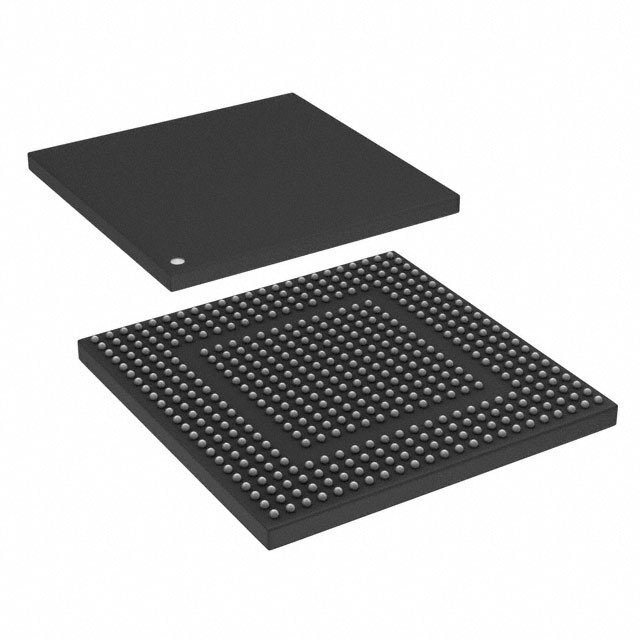

Features PowerPC e300c3 Microprocessor IC series 1 Core, 32-Bit 400MHz 473-MAPBGA (19x19)
Manufacturer NXP
Series MPC83xx
Package Tray
Part Status Obsolete
Core Processor PowerPC e300c3
Speed 400MHz
Operating Temperature Range -40°C ~ 105°C (TA)
Package 473-LFBGA
Case / Package 473-MAPBGA (19x19)
Family Name MPC83
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 252
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885726-MPC8308CVMAGD
Ultra Librarian 3D Model Ultra Librarian MPC8308CVMAGD CAD Model

Description

The NXP MPC8308CVMAGD is a power-efficient, highly integrated PowerQUICC II Pro processor designed to meet the requirements of embedded networking and telecommunications applications. This advanced system-on-chip (SoC) combines a high-performance e300 core with a wealth of connectivity and control features, making it an ideal solution for a wide range of applications including wireless access points, industrial control, and automation systems.

Key Features

  • Core: The MPC8308CVMAGD is built around an e300c3 Power Architecture® core that can reach speeds of up to 400 MHz, delivering the computational power necessary for complex tasks without sacrificing energy efficiency.
  • Memory Support: It includes a DDR2/DDR3 memory controller, enabling it to work with the latest high-speed memory technologies for improved system performance.
  • Connectivity: This processor offers a rich set of connectivity options including dual Gigabit Ethernet controllers, USB 2.0 support, and a PCI Express interface, providing versatile options for network and peripheral connectivity.
  • Security: The MPC8308CVMAGD incorporates a security engine that supports a variety of algorithms, including DES, 3DES, AES, MD5, and SHA, to ensure secure data transmission and storage.
  • Power Efficiency: NXP's focus on power efficiency is evident in the MPC8308CVMAGD's design, which includes integrated power management features to minimize power consumption.
  • Temperature Range: With an industrial temperature range, this processor is built to operate reliably in harsh environments, making it suitable for outdoor deployment.

Applications

The MPC8308CVMAGD is versatile enough to be used in a variety of applications. It is particularly well-suited for:

  • Wireless Access Points and Routers
  • Industrial Control Systems
  • Network Attached Storage Devices
  • Print and Imaging Devices
  • Integrated Services Digital Network (ISDN) Equipment

By integrating multiple features into a single chip, the NXP MPC8308CVMAGD allows for the development of compact and efficient devices, reducing overall system costs and simplifying the design process for engineers.
