Products specifications

Categories Integrated Circuits (ICs)

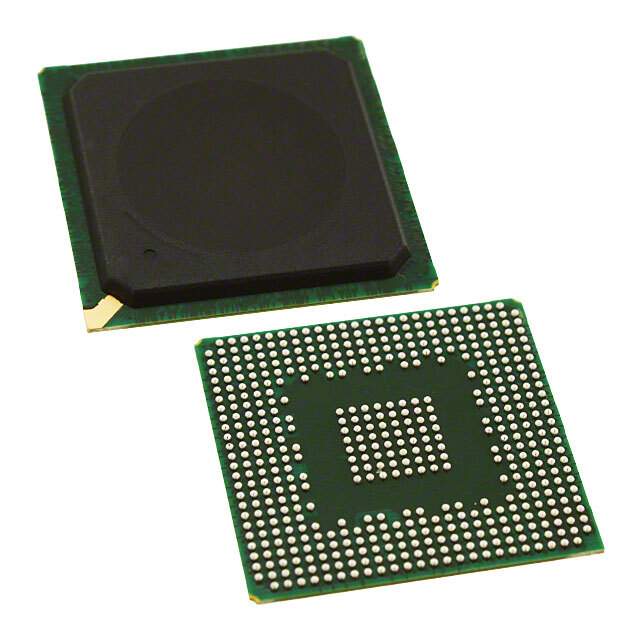

Features PowerPC e300c3 Microprocessor IC series 1 Core, 32-Bit 333MHz 516-TEPBGA (27x27)
Manufacturer NXP
Series MPC83xx
Package Tray
Part Status Obsolete
Core Processor PowerPC e300c3
Speed 333MHz
Operating Temperature Range -40°C ~ 105°C (TA)
Package 516-BBGA Exposed Pad
Case / Package 516-TEPBGA (27x27)
Family Name MPC83
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927888-MPC8313ECVRAFF
Ultra Librarian 3D Model Ultra Librarian MPC8313ECVRAFF CAD Model

Description

Product Overview: NXP MPC8313ECVRAFF

The NXP MPC8313ECVRAFF is a high-performance, power-efficient processor that is part of the PowerQUICC II Pro family. Designed to meet the needs of networking and embedded systems, the MPC8313E incorporates a PowerPC core with enhanced features suitable for a wide range of applications including wireless access points, residential gateways, and integrated printers.

Key Features

  • PowerPC Core: It features an e300c3 PowerPC core that delivers robust performance with clock speeds up to 333 MHz, providing the computational power needed for complex tasks.
  • Integrated Security: The MPC8313E offers an integrated security engine that supports a variety of algorithms, including DES, 3DES, AES, MD5, SHA-1/256, and RSA, ensuring secure data transmission and protection against unauthorized access.
  • Connectivity: With dual Ethernet controllers, the processor is optimized for networking tasks and can handle multiple network connections efficiently.
  • Memory Support: The device supports DDR2 memory, providing high-speed data transfer and storage capabilities. This allows for quick access to data and smooth operation of memory-intensive applications.
  • PCI Express Interface: The inclusion of a PCI Express interface enables high-speed communication with peripheral devices, making it suitable for embedded systems that require fast data throughput.

Applications

The versatility of the MPC8313ECVRAFF makes it ideal for a range of applications. It is particularly well-suited for networking equipment such as routers and switches, as well as industrial control systems where reliable performance is critical. Additionally, its integrated security features make it a good choice for applications that require secure data handling, like VPN routers and firewalls.

Environmental and Quality Standards

NXP's commitment to quality and environmental sustainability is evident in the MPC8313ECVRAFF processor, which is designed to meet the rigorous standards of the electronics industry. With a focus on energy efficiency and long-term reliability, this processor is built to perform in a variety of challenging environments and applications.
