Product Overview: MRF6V3090NR5 - NXP

The MRF6V3090NR5 is a high-performance RF power transistor from NXP Semiconductors, designed to deliver exceptional power and efficiency for a wide range of applications. This device is part of NXP's renowned RF power LDMOS transistor family, which is well-known for its high-quality performance in the field of RF power amplification.

With an operating frequency range of 1.8-2.0 GHz, the MRF6V3090NR5 is particularly well-suited for use in RF power amplifiers for cellular base station applications. It boasts a high output power of 90 W CW, ensuring strong signal transmission capabilities. The transistor is designed with NXP's advanced LDMOS technology, which provides a high gain of 18 dB, excellent thermal stability, and a high level of ruggedness, with a 65:1 VSWR capability.

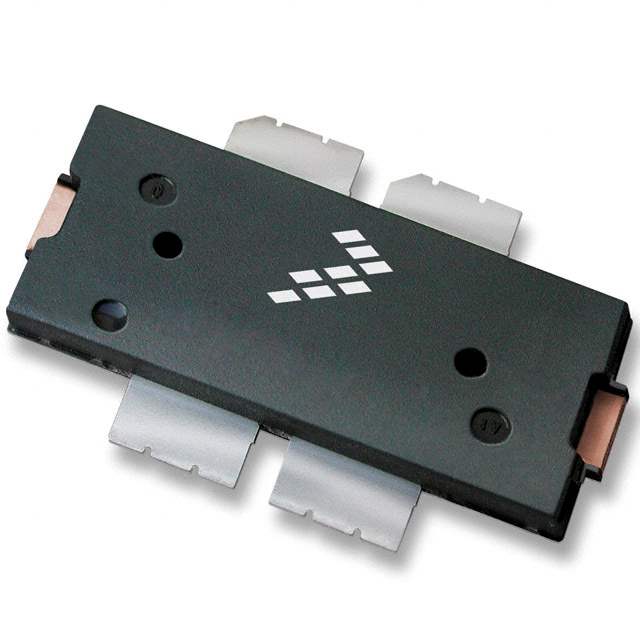

The MRF6V3090NR5 comes in a ceramic package which offers excellent thermal properties, ensuring reliable operation even under high-temperature conditions. The device is designed to operate at a supply voltage of 28 V, making it compatible with a wide range of power sources and simplifying system design. Additionally, its high efficiency reduces the thermal load, leading to lower cooling requirements and potentially reducing system costs.

Key Features:

• Frequency Range: 1.8-2.0 GHz
• Output Power: 90 W CW
• Gain: 18 dB
• Supply Voltage: 28 V
• High Ruggedness: 65:1 VSWR
• Integrated ESD Protection
• High Efficiency
• Ceramic Package for Enhanced Thermal Performance

The integration of ESD protection within the device helps to prevent damage from electrostatic discharge events, further enhancing the durability and longevity of the MRF6V3090NR5. This makes it a reliable choice for demanding environments where reliability is critical.

In summary, the MRF6V3090NR5 from NXP offers a powerful combination of performance, efficiency, and ruggedness, making it an ideal choice for manufacturers seeking to develop robust and high-quality RF amplification systems for telecommunications infrastructure.
