Product Overview: MRF6VP2600HR6 - NXP

The MRF6VP2600HR6 is a high-power RF transistor designed and manufactured by NXP Semiconductors, a leader in the field of high-performance RF solutions. This device is part of NXP's extensive RF power transistor portfolio and is specifically engineered for applications requiring high efficiency and wide bandwidth capabilities.

Key Features:

• Frequency Range: The MRF6VP2600HR6 operates at a frequency range of 1.8-600 MHz, making it versatile for a variety of RF applications including broadcast, industrial, and military.
• Output Power: With an impressive output power of 600W, this LDMOS transistor is capable of delivering high power levels, essential for applications such as high-power amplifiers.
• High Gain: The device offers high gain performance, typically 23 dB, ensuring efficient signal amplification in the intended frequency range.
• High Efficiency: The MRF6VP2600HR6 is designed for high efficiency, with a typical performance of 75% peak efficiency, reducing overall system power consumption and heat generation.
• Ruggedness: This transistor is rugged and can withstand a VSWR of 10:1 through all phases of the pulse, providing reliable performance under mismatched load conditions.
• Integrated ESD Protection: The device includes integrated ESD protection, enhancing its robustness and longevity in harsh environments.

Applications:

The versatility of the MRF6VP2600HR6 makes it suitable for a wide range of applications. It is commonly used in RF power amplifiers for FM broadcast, VHF TV broadcast, industrial heating and plasma generation, as well as for scientific and medical applications. Its ruggedness also makes it a reliable choice for military communications and radar systems.

Package and Quality:

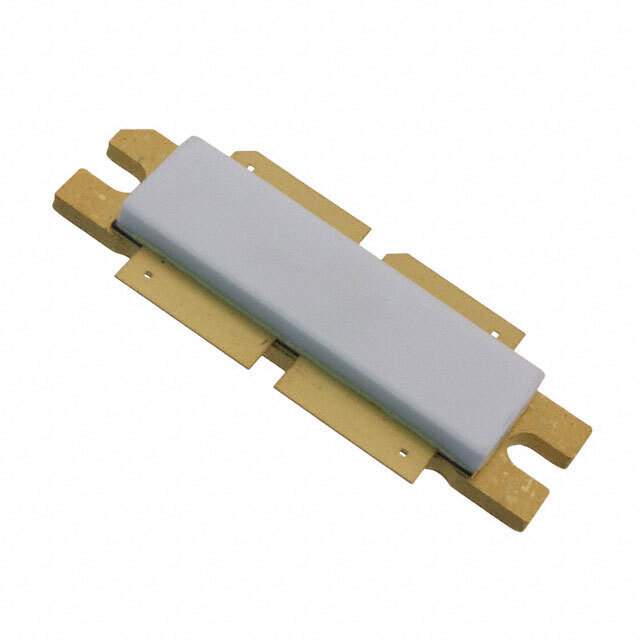

The MRF6VP2600HR6 is encapsulated in a high-performance ceramic package that provides excellent thermal stability and is designed for high reliability. NXP's commitment to quality ensures that each device meets stringent industry standards for performance and durability.
