Product Overview: NX3L2267GM,115 by NXP

The NX3L2267GM,115 is a high-performance, dual single-pole double-throw (SPDT) analog switch from NXP Semiconductors, designed to deliver exceptional signal switching capabilities for a wide range of applications. This advanced switch is part of the NX3L series, which is known for its low power consumption and high-speed operation.

Key Features

• Low On-Resistance: The device features a low on-resistance of typically 0.37 ohms at V<sub>CC = 4.3 V, which ensures minimal signal distortion and power loss during operation.
• Wide Supply Voltage Range: It operates over a wide supply voltage range of 1.65 V to 5.5 V, making it suitable for interfacing with both low-voltage and standard logic levels.
• High-Speed Switching: With its fast switching speeds, the NX3L2267GM,115 can handle high-frequency signals, making it an excellent choice for audio, video, and data signal routing.
• ESD Protection: The device offers robust electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh environments.
• Break-Before-Make Switching: This feature prevents signal shorting, as it ensures that one switch is disconnected before the other connects, providing a safe switching operation.
• Low Power Consumption: The NX3L2267GM,115 is optimized for low power consumption, which is critical for battery-powered devices.

Applications

The NX3L2267GM,115 is versatile and can be used in various applications such as:

• Cellular phones
• PDAs
• Portable media players
• Signal routing in audio, video, and data communication systems
• PCMCIA cards and other memory switch applications

Package and Quality

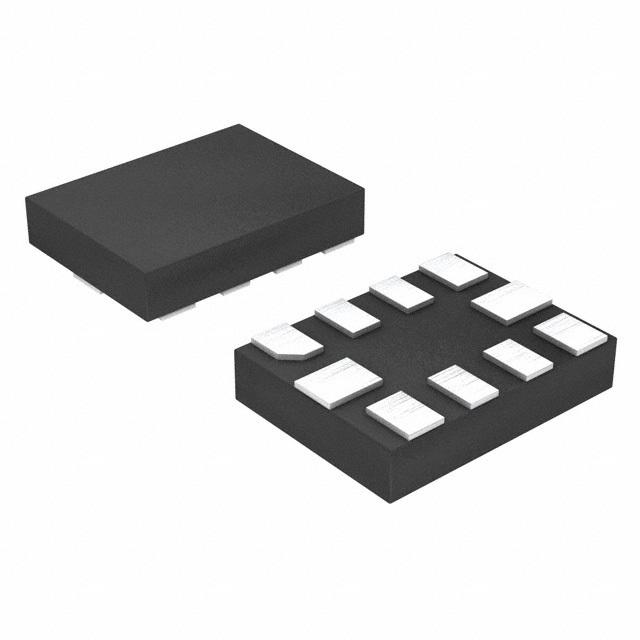

The NX3L2267GM,115 comes in a compact XSON10 package, offering a space-saving solution for high-density circuit designs. It is manufactured to NXP's high-quality standards, ensuring performance and reliability for critical applications.

Conclusion

With its combination of low on-resistance, wide voltage range, high-speed operation, and ESD protection, the NX3L2267GM,115 from NXP stands out as a top choice for designers looking for a reliable and efficient analog switch solution. Whether for consumer electronics or industrial applications, this component is engineered to meet the rigorous demands of modern electronic systems.
