The NXP PBHV9540Z is a robust high voltage transistor designed to cater to a wide array of applications requiring efficient power management and high voltage operations. This product is a testament to NXP's commitment to providing innovative semiconductor solutions that enhance performance and reliability across various industries.

Key Features

• Voltage Capabilities: The PBHV9540Z boasts a collector-emitter voltage (Vceo) of 400V, making it suitable for circuits that operate at high voltages.
• Current Handling: With a collector current (Ic) of up to 1A, this transistor can handle significant current levels, ensuring stable operation in power-intensive applications.
• Power Dissipation: This device has a power dissipation (Ptot) of 25W, providing a good balance between power handling and thermal performance.
• HFE (DC Current Gain): It features a high DC current gain (hFE), which means it can amplify a small input current into a much larger output current, making it ideal for amplification purposes.

Applications

The NXP PBHV9540Z is versatile and can be used in a variety of applications, including but not limited to:

• Switch-mode power supplies (SMPS)
• Power management modules
• Lighting circuits, including LED drivers
• Converter and inverter circuits
• High voltage amplification setups

Quality and Reliability

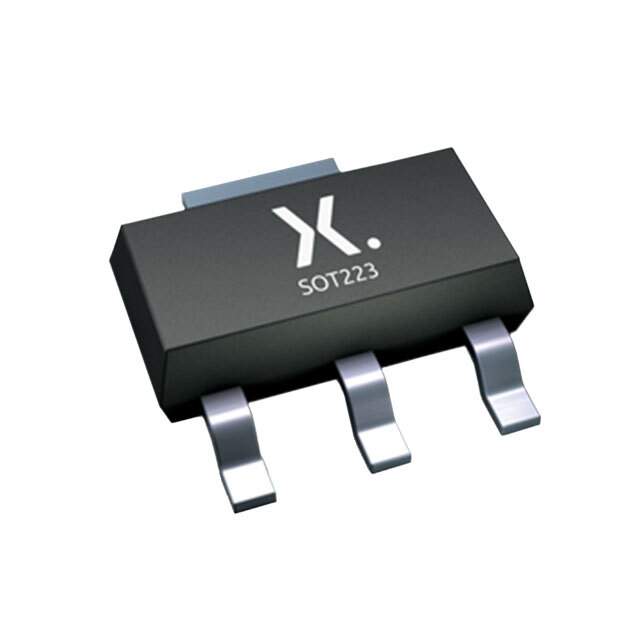

NXP's PBHV9540Z is designed with a focus on quality and reliability. It is constructed to withstand the rigors of demanding environments and to provide consistent performance over its lifespan. The device is encapsulated in a SOT223 package, which is known for its compact size and excellent thermal properties, ensuring the transistor remains cool during operation.

Environmental Compliance

Complying with global environmental standards, the PBHV9540Z is RoHS compliant and free from harmful substances. This commitment to environmental sustainability makes it a responsible choice for manufacturers looking to create eco-friendly products.
