Product Overview: NXP PCA9306GF Level Translator

The NXP PCA9306GF is a versatile bidirectional voltage-level translator specifically designed for I2C-bus and other systems where a bidirectional voltage translation is required. This compact device is a dual bidirectional I2C-bus and SMBus voltage-level translator with an open-drain design, suitable for applications that require interfacing between systems operating at different voltage levels.

The PCA9306GF allows for direct interfacing to I2C-bus applications where different voltage levels on the SCL and SDA lines need to be shifted, making it an essential component for modern mixed-voltage systems. It is capable of translating between 1.0V and 3.6V on the 'A' side (Vref1) and 1.8V to 5.5V on the 'B' side (Vref2), covering a broad range of voltage levels used in today's devices.

This level translator provides a solution for interfacing devices that operate at different voltages with true bidirectional translation capabilities. It is designed with two separate configurable power-supply rails, one on each side of the device, which allows for level translation between any of the voltage nodes (1.0V, 1.8V, 2.5V, 3.3V, and 5V).

The PCA9306GF's design ensures that the SDA and SCL lines are not loaded when the translator is disabled or when VCC is below the under-voltage lockout threshold. Moreover, it incorporates a unique feature that retains the data integrity by preventing false triggering when the bus is idle.

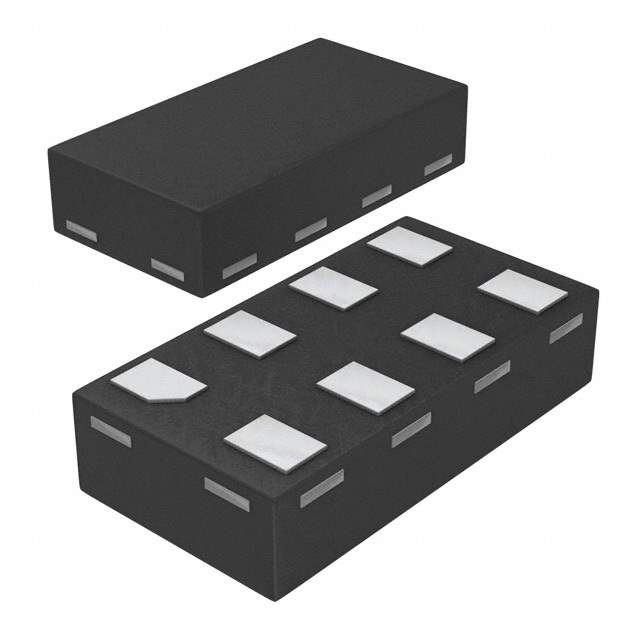

Packaged in a lead-free, green, RoHS-compliant, and space-saving X2SON package, the PCA9306GF is not only environmentally friendly but also suitable for the most space-constrained applications. Its small form factor and low power consumption make it an ideal choice for portable and battery-operated devices.

In summary, the NXP PCA9306GF is a reliable and efficient solution for voltage-level translation, ensuring seamless communication between devices with different voltage requirements, which is crucial for maintaining compatibility in a multi-voltage environment.
