SN74LVC8T245DBQR: A Versatile Level-Shifting Transceiver from Texas Instruments

The SN74LVC8T245DBQR is a state-of-the-art 8-bit dual-supply bus transceiver with configurable voltage translation and 3-state outputs. Manufactured by Texas Instruments, a leader in semiconductor solutions, this device is designed to provide seamless communication between devices operating at different voltage levels. The SN74LVC8T245DBQR is part of the LVC family, which is renowned for its low-voltage operation and high-speed interface technology.

Key Features:

• Wide Voltage Range: The device supports a wide range of supply voltages from 1.65V to 5.5V on both the A and B ports. This feature makes it suitable for interfacing between low-voltage and high-voltage circuits without the need for additional level shifters.
• Bi-Directional Data Flow: With direction control (DIR) and output enable (OE) inputs, the SN74LVC8T245DBQR provides flexible data flow control, allowing bidirectional data transmission between the A and B buses.
• High-Speed Data Transfer: The device is capable of supporting high-speed data transfer rates, making it ideal for high-performance applications that require quick and efficient data handling.
• Low Power Consumption: The SN74LVC8T245DBQR is designed for low power consumption, which is critical for battery-powered and energy-efficient applications.
• Robust ESD Protection: Electrostatic discharge (ESD) protection is provided on all pins to prevent damage from static electricity, ensuring reliability and longevity in various environments.

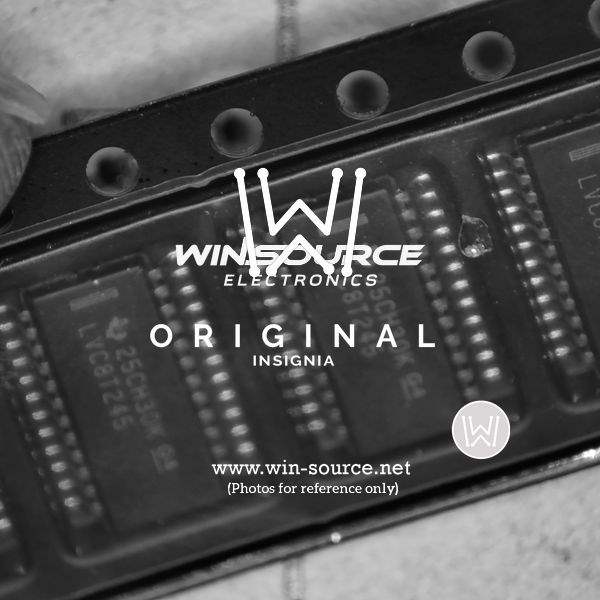

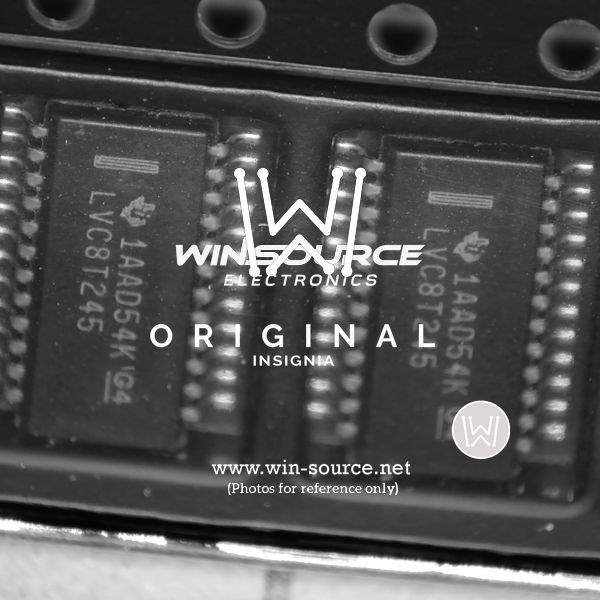

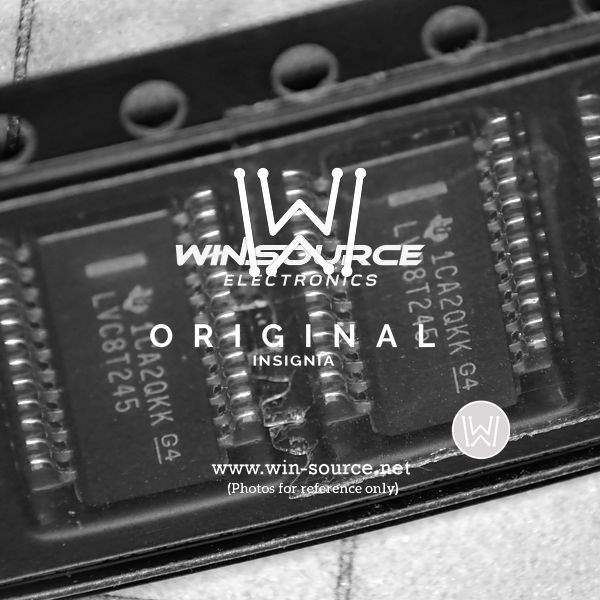

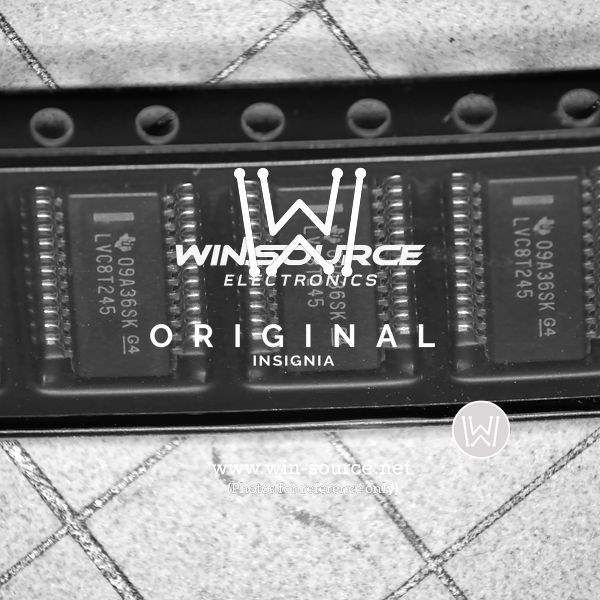

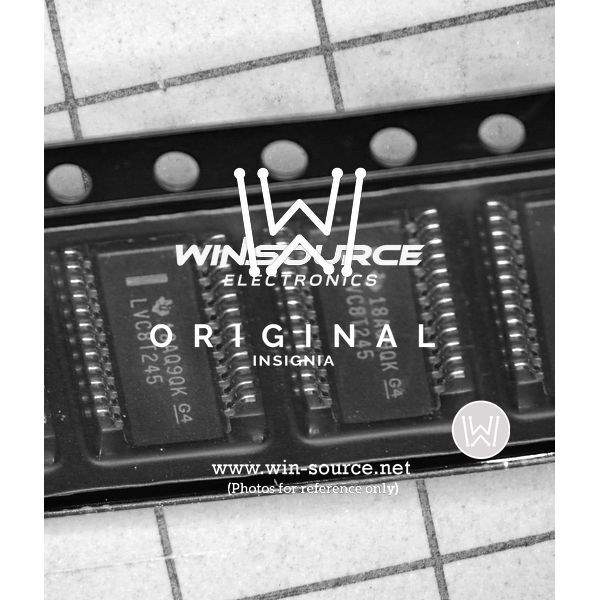

• Small Package Size: The device is available in a compact 24-pin SSOP (DBQ) package, which is ideal for space-constrained applications.

Applications:

The SN74LVC8T245DBQR is well-suited for a variety of applications that require voltage level translation, such as:

• Multivoltage systems
• Data bus communication
• Signal bridging between different logic levels
• Microcontroller or microprocessor interfacing
• Telecommunications and networking equipment
• Portable and battery-powered devices

With its robust feature set and flexible design, the SN74LVC8T245DBQR from Texas Instruments is an excellent choice for designers looking to enhance the interoperability of their digital systems while maintaining signal integrity and power efficiency.
