The SN74LVCC3245ADB is a high-performance, octal bus transceiver from Texas Instruments designed to facilitate bidirectional communication between two buses of different voltage levels. This device is part of TI's advanced low-voltage CMOS (LVCMOS) family and is optimized for signaling rates up to 32 MHz, making it an excellent choice for high-speed data transfer applications.

Key Features

• Dual-Supply Voltage Ranges: This transceiver operates with two distinct power supply voltages, V<sub>CCA and V<sub>CCB, which range from 2.7V to 3.6V and 1.65V to 3.6V respectively, allowing for level translation between different logic levels.
• Bidirectional Data Flow: With direction control (DIR) and output-enable (OE) inputs, the SN74LVCC3245ADB can control the data flow direction, making it versatile for various data communication protocols.
• Low Power Consumption: The device features a low-power standby mode, significantly reducing power consumption when not in active use.
• High Drive Capability: The SN74LVCC3245ADB can drive up to 24 mA on both the A and B ports, providing strong signal integrity even over long traces or through capacitive loads.

Applications

The SN74LVCC3245ADB is ideal for a wide range of applications including:

• Multivoltage systems
• Signal bridging for different logic levels
• Bus isolation and protection
• High-speed data transfer interfaces

Package and Quality

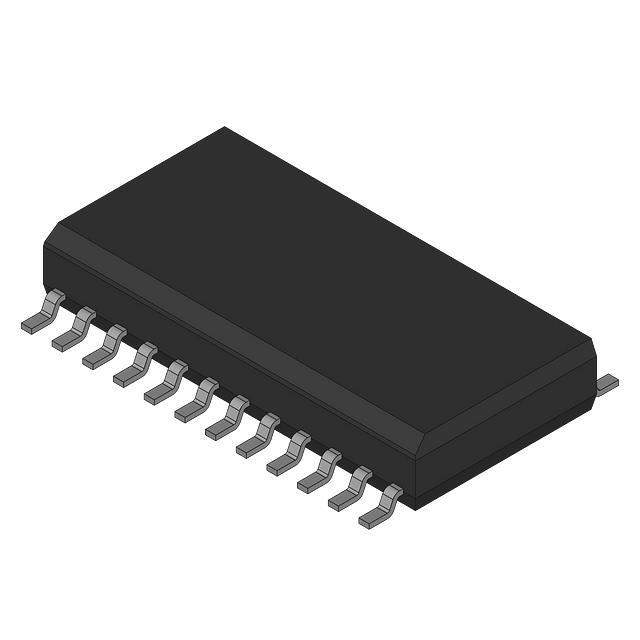

Encased in a 24-pin SSOP (Shrink Small-Outline Package), the SN74LVCC3245ADB is designed for space-saving on PCBs while ensuring robustness and reliability. Texas Instruments is committed to delivering high-quality products, and this transceiver is no exception, adhering to strict industry standards for performance and durability.

Ordering Information

To order the SN74LVCC3245ADB or to obtain more information about pricing and availability, please visit the Texas Instruments website or contact an authorized distributor. Ensure to reference the specific product code SN74LVCC3245ADB to get the exact specifications mentioned here.
