Product Overview: NXP PCA9698BS 40-bit Fm+ I²C-bus Advanced I/O Expander

The NXP PCA9698BS is a highly versatile 40-bit I²C-bus I/O expander designed to provide seamless expansion of I/O capabilities for I²C-bus or SMBus compatible systems. This advanced I/O expander is part of NXP's leading-edge interface products, offering a robust solution for designers looking to increase the number of I/Os in their system without adding complexity or incurring significant additional costs.

With its 40-bit configuration, the PCA9698BS provides an extensive array of inputs/outputs that can be individually configured as either inputs or outputs. This flexibility makes it an ideal choice for a wide range of applications, including servers, personal computers, and industrial automation systems where additional I/Os are needed.

The device operates at a voltage range of 2.3 V to 5.5 V, allowing it to support both 3.3 V and 5 V logic levels, thus providing compatibility with most microcontrollers and processors. Its high-speed I²C interface supports up to 1 MHz (Fast-mode Plus), enabling swift communication with the host controller.

The PCA9698BS features an integrated oscillator which requires no external components, and its internal power-on reset negates the need for additional circuitry, simplifying design and reducing overall system cost. Additionally, the device includes 400 kHz Fast-mode I²C for backward compatibility and software programmable interrupt output which can be configured to reflect the status of any input, providing immediate alerts to the host controller on status changes.

For enhanced robustness, the PCA9698BS incorporates power-up sequence control and an active LOW reset input, ensuring reliable operation throughout various system states. This expander also includes built-in level shifting, making it easy to interface with different logic levels on the same bus.

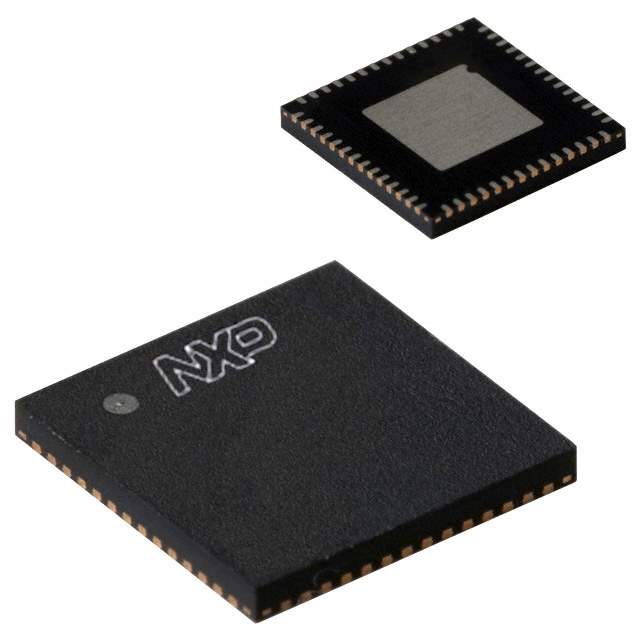

The package for the NXP PCA9698BS is a space-saving HVQFN56, which is ideal for applications with limited PCB space. The device also supports a wide operating temperature range, making it suitable for use in environments with extreme temperature conditions.

Overall, the NXP PCA9698BS stands out as a sophisticated solution for system designers seeking to enhance their I/O capabilities with a reliable, high-performance I²C-bus I/O expander.
