NXP PCF8574P I/O Expander

The NXP PCF8574P is a robust I/O expander that enhances the input/output capabilities of microcontroller systems. This integrated circuit is designed to provide additional eight I/O ports, which can be controlled via a two-wire bidirectional bus (I²C). Its primary use is in applications where there is a need to minimize the number of microcontroller pins used, which is particularly useful in systems with limited GPIOs.

Featuring a wide voltage range, the PCF8574P operates between 2.5V to 6V, making it suitable for interfacing with both 5V and 3.3V microcontroller logic levels. This flexibility ensures that it can be used in a variety of systems without the need for level shifting.

The device's address pins (A0, A1, and A2) allow for multiple PCF8574P chips to be used on the same I²C bus, offering the possibility to expand the I/Os even further. Up to eight PCF8574P devices can be connected in parallel, providing up to 64 additional I/O ports. This is particularly beneficial in complex systems where numerous sensors, buttons, or other peripherals must be managed.

Each I/O port can be independently configured as an input or output, providing versatility in the types of peripherals that can be connected. The quasi-bidirectional I/Os can be used without the need for input or output configuration, simplifying the initial setup and reducing the software overhead. Furthermore, the PCF8574P has an interrupt output that can be connected to the interrupt input of a microcontroller. This feature is crucial for alerting the host microcontroller of changes at the port pins without the need for constant polling, thus saving power and processing resources.

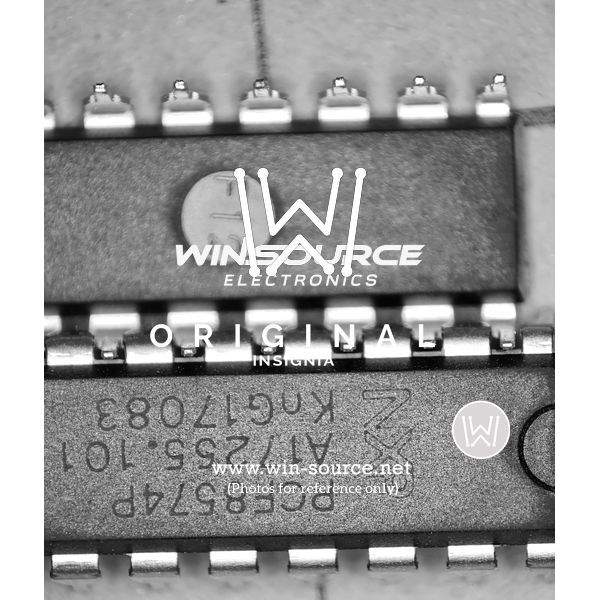

The PCF8574P is available in a 16-pin DIP (Dual In-line Package), making it easy to handle for hobbyists and suitable for breadboard prototyping or professional PCB design. Its compact size and ease of integration make it a popular choice for expanding the I/O capabilities in a wide range of electronic projects and products.

Overall, the NXP PCF8574P I/O expander is a versatile and cost-effective solution for systems requiring additional I/O ports, without the complexity of adding more microcontrollers or complex wiring.
