The PMEG4005EJ is a highly efficient, ultra-low forward voltage Schottky barrier diode designed and manufactured by NXP Semiconductors. This diode is specifically engineered to offer superior performance in applications that demand high energy efficiency and reliability.

Key Features

• Low Forward Voltage: The PMEG4005EJ boasts an extremely low forward voltage drop, typically just 0.37V at IF = 1A, which helps to minimize power loss and improve overall system efficiency.
• High Current Capability: With a forward current rating of 1A, this diode is capable of handling moderate power requirements, making it suitable for a wide range of applications.
• Reverse Voltage Rating: It can withstand reverse voltages up to 40V, ensuring protection against voltage spikes and surges commonly found in electronic circuits.
• Low Reverse Leakage Current: The diode features a low leakage current, which contributes to its high efficiency and helps prevent the waste of energy.

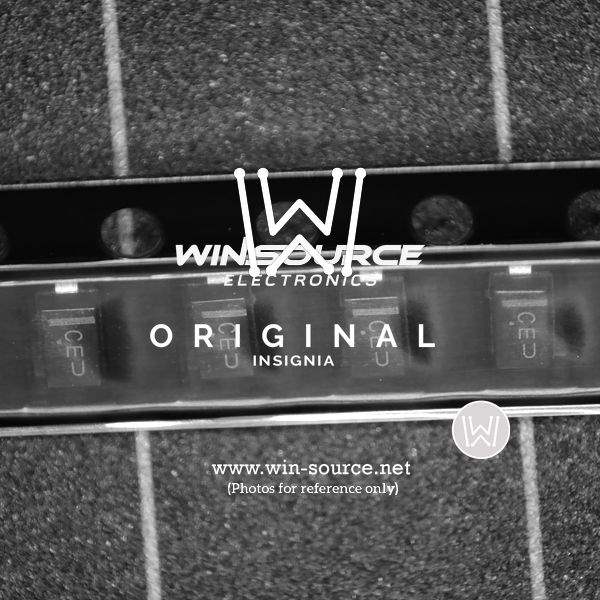

• Compact Package: Encased in a small SOD323 (SC-76) surface-mount package, the PMEG4005EJ is ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, this product is lead-free and fully compliant with the Restriction of Hazardous Substances (RoHS) directive.

Applications

The PMEG4005EJ is versatile and can be used in a variety of applications, including but not limited to:

• Low voltage, high-frequency inverters
• Free-wheeling and polarity protection devices
• DC/DC converters
• Power supply units
• Automotive applications
• Portable devices and battery-powered equipment

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The PMEG4005EJ diode is produced using stringent quality control processes, ensuring both reliability and performance for critical applications. Its robust construction guarantees long-term stability, even under challenging environmental conditions.
