PTN3360BBS,518 - NXP DisplayPort to LVDS Bridge

The PTN3360BBS,518 from NXP Semiconductors is a high-performance DisplayPort to LVDS bridge device designed to connect a DisplayPort source to an LVDS display panel. It serves as a critical component in the realm of digital display technology, providing a seamless interface between modern DisplayPort-enabled video sources and traditional LVDS-based displays commonly found in laptops, monitors, and industrial display systems.

Key Features

• DisplayPort 1.1a Compliant: The device supports a 1 or 2 lane DisplayPort input which is fully compliant with the DisplayPort 1.1a specification, ensuring compatibility with a wide range of DisplayPort sources.
• LVDS Output: It converts the DisplayPort signal to LVDS, supporting single-link LVDS for 18-bit (6-bit per channel) and 24-bit (8-bit per channel) color depths, providing flexibility for various display requirements.
• EDID Support: The PTN3360BBS,518 includes an integrated EDID buffer, which simplifies the implementation of EDID management and reduces the need for additional components.
• Color Depth and Resolution: It supports a wide range of resolutions and color depths, ensuring that high-quality video can be delivered to the display without compromise.
• Power Management: The device features advanced power management capabilities, including a low-standby current, making it suitable for battery-powered applications where power efficiency is critical.

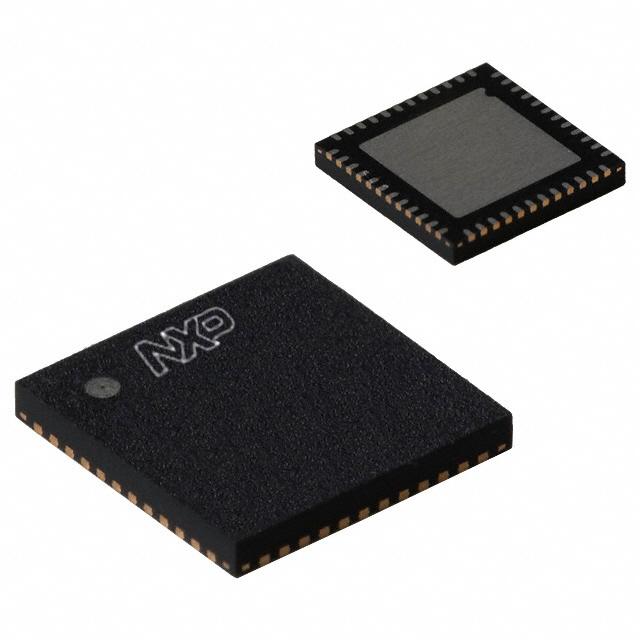

• Package: Housed in a compact HVQFN56 package, the PTN3360BBS,518 is designed for space-constrained applications.

Applications

The versatility of the PTN3360BBS,518 makes it an ideal solution for a range of applications, including notebook PCs, computer monitors, docking stations, video conferencing systems, and other AV products that require a bridge from DisplayPort to LVDS. Its ability to deliver high-resolution video with low power consumption also makes it suitable for portable and battery-operated devices.

Conclusion

Overall, the PTN3360BBS,518 from NXP provides a robust and reliable solution for bridging DisplayPort to LVDS interfaces. Its compliance with DisplayPort standards, integrated EDID buffer, and advanced power management features make it a smart choice for manufacturers looking to create high-performance display systems with legacy LVDS panels.
