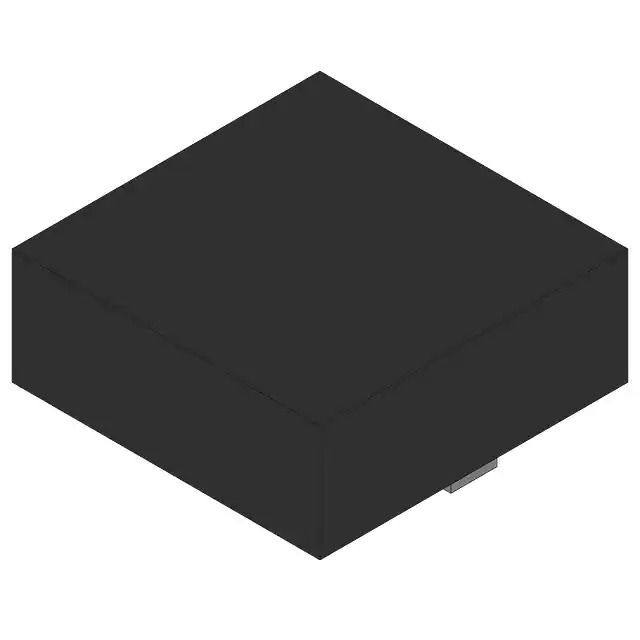

The PTVS10VU1UPA147 is a state-of-the-art Transient Voltage Suppressor (TVS) diode designed by NXP Semiconductors, a global leader in secure connectivity solutions for embedded applications. This robust TVS diode is specifically engineered to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Key Features

• Stand-off Voltage: The device has a stand-off voltage of 10V, which is the maximum voltage that can be applied over the operating temperature range without causing excessive current flow.
• Peak Pulse Power: It offers an impressive peak pulse power dissipation of 400W (10/1000μs waveform), ensuring reliable protection against high energy transients.
• Low Clamping Voltage: The PTVS10VU1UPA147 features a low clamping voltage, which is the maximum voltage drop across the device when subjected to a peak pulse current.
• Uni-directional: As a uni-directional TVS diode, it is designed to provide protection in one polarity, making it ideal for DC power supply applications where specific line polarity is present.
• Low Leakage Current: It boasts a low leakage current, minimizing power loss when the device is in the stand-by mode and thereby enhancing the overall efficiency of the protected circuit.

Applications

The PTVS10VU1UPA147 is suitable for a diverse range of applications, including:

• Automotive electronics
• Industrial systems
• Consumer electronics
• Telecommunication infrastructure
• Power supply units

Reliability and Compliance

This TVS diode is designed to meet the rigorous demands of the industry, offering high reliability and performance. It complies with the ISO 7637-2 and ISO 16750-2 standards for pulse requirements in automotive environments, ensuring its suitability for vehicular applications. Furthermore, the PTVS10VU1UPA147 is RoHS compliant, adhering to environmental regulations by avoiding the use of hazardous substances.

For detailed specifications, application notes, and further information, interested parties are encouraged to visit the NXP Semiconductors official website or contact their local sales office.
