The NXP S912ZVC12F0VKH is a powerful and versatile microcontroller that is part of the S12 MagniV portfolio, designed to support a wide range of automotive and industrial applications. This integrated circuit is built on NXP's proven S12 technology, combining a microcontroller with a smart mixed-signal capability in a single die, which helps to reduce system complexity and cost.

Key Features:

• Core: The S912ZVC12F0VKH features a 16-bit S12 core that operates at up to 25 MHz, providing a robust platform for complex real-time processing and control tasks.
• Memory: Equipped with 128 KB of flash memory and 8 KB of RAM, this microcontroller offers ample space for application code and data storage.
• Integrated Analog Functions: It includes an array of analog features such as a 12-channel 10-bit Analog-to-Digital Converter (ADC), two analog comparators with a 6-bit Digital-to-Analog Converter (DAC) for comparator reference trimming, and on-chip voltage regulator.
• Timers: The device comes with several timing systems, including an 8-channel timer module, 2-channel 16-bit timers, and a Real-Time Interrupt (RTI) module, which are essential for time-critical tasks and PWM generation.
• Communication Interfaces: For communication, it supports multiple interfaces, including two Serial Communication Interface (SCI) modules, a Serial Peripheral Interface (SPI) module, and an Inter-Integrated Circuit (I²C) bus interface.

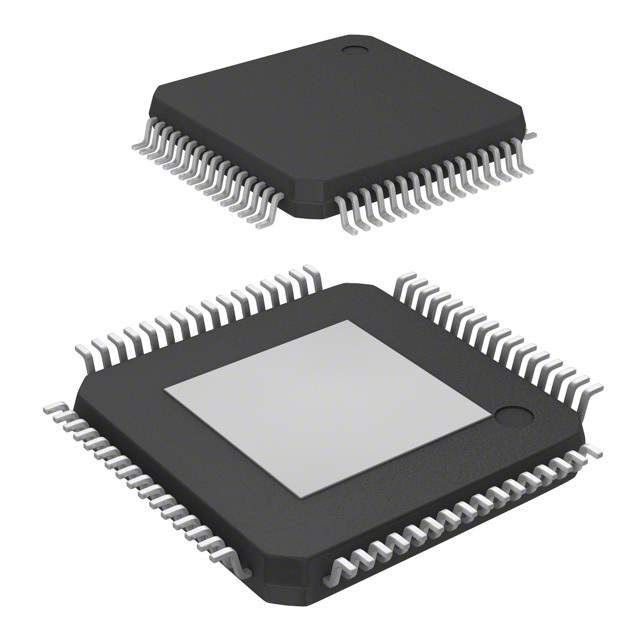

• Package: The microcontroller is available in a 64-pin LQFP package, which is suitable for space-constrained applications.

Applications:

The S912ZVC12F0VKH is ideal for a variety of applications, particularly in the automotive industry where it can be used for body control modules, window lift and sunroof control, door modules, seat control, and HVAC systems. Its robust design also makes it suitable for industrial applications such as factory automation, motor control, and sensor interfacing.

Advantages:

This microcontroller's integration of analog and digital components on a single chip not only simplifies the design of complex systems but also enhances reliability and performance. The S912ZVC12F0VKH is designed for applications requiring high levels of integration and low power consumption, making it a smart choice for designers looking to optimize their systems.
