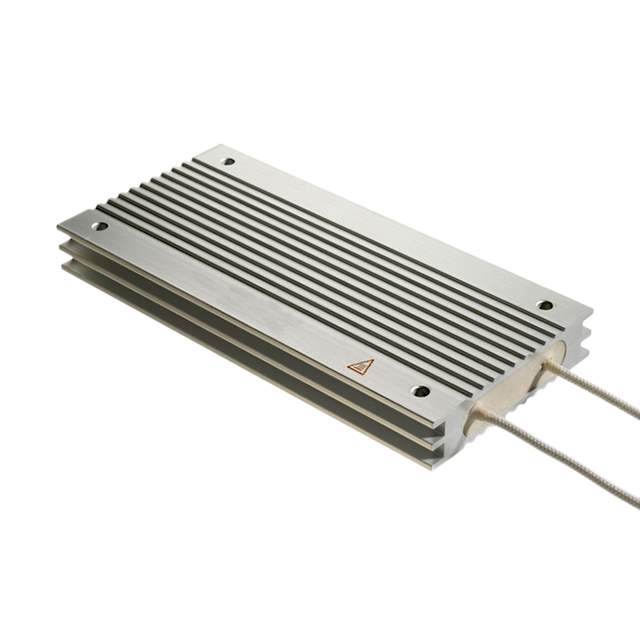

Same model may have multiple batches, images only for reference.

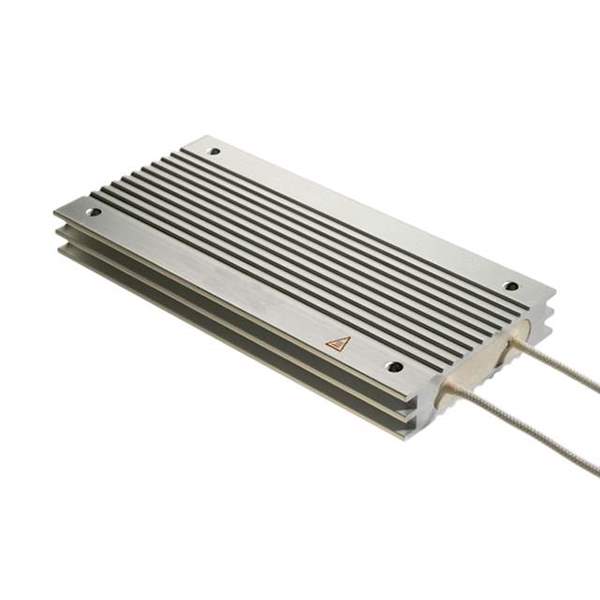

ARF600 20R J Real Image
Same model may have multiple batches, images only for reference.

ARF600 20R J

Part No ARF600 20R J
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 20 OHM 5% 600W  /  20 Ohms ±5% 600W Wirewound Chassis Mount Resistor
Datasheet
ARF600 20R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series ARF
Package Bulk
Resistance 20 Ohms
Tolerance ±5%
Power (Watts) 600W
Composition Wirewound
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating 0°C ~ 200°C
Features Pulse Withstanding
Coating, Housing Type Aluminum
Mounting Feature Screw Holes
Dimension 11.811" L x 3.110" W (300.00mm x 79.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Lead Style Wire Leads
Package / Case Rectangular Case
Base Product Number ARF600
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names ARF600 20R J-ND,ARF60020RJ
Standard Package 1
Win Source Part Number 1045937-ARF600 20R J
Ultra Librarian 3D Model Ultra Librarian ARF600 20R J CAD Model

Description

The Ohmite ARF600 20R J is a chassis mount resistor designed for pulse withstanding.

  • Resistance: 20 Ohms
  • Power Rating: 600W
  • Temperature Coefficient: ±150ppm/°C
  • Tolerance: ±5%
  • Composition: Wirewound
  • Coating: Aluminum
  • Package Dimensions: 11.811" L x 3.110" W (300.00mm x 79.00mm)
  • Mounting: Screw holes
  • Temperature Range: 0°C ~ 200°C
  • Application: High power handling capacity and pulse withstanding
