Same model may have multiple batches, images only for reference.

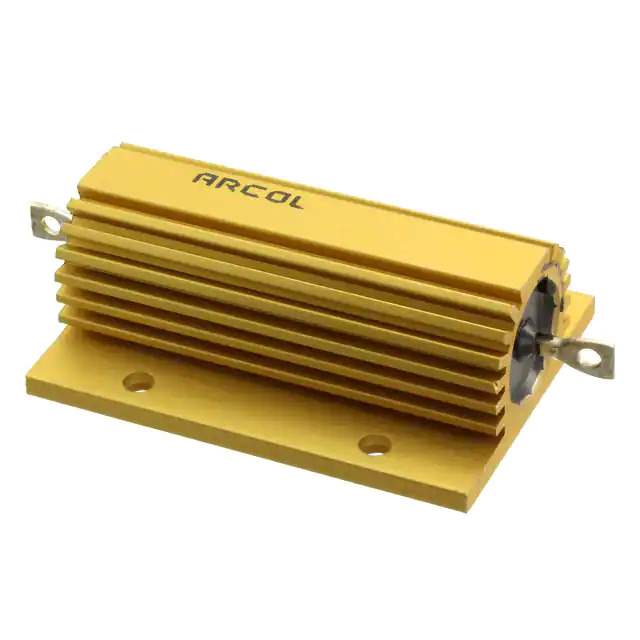

HS100 33R J Real Image
Same model may have multiple batches, images only for reference.

HS100 33R J

Part No HS100 33R J
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 33 OHM 5% 100W
Datasheet
HS100 33R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Product Status Active
Resistance 33 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 2.566" L x 1.075" W (65.20mm x 27.30mm)
Height - Seated (Max) 0.949" (24.10mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 45 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 873877-HS100 33R J
Ultra Librarian 3D Model Ultra Librarian HS100 33R J CAD Model

Description

The ARCOL HS series chassis mount resistor is a reliable electronic component designed for various applications and manufactured by Ohmite.

  • Size: 2.566" L x 1.075" W (65.20mm x 27.30mm)
  • Maximum Seated Height: 0.949" (24.10mm)
  • Power Rating: 100W
  • Resistance: 33 Ohms
  • Material: Wirewound
  • Coating: Aluminum
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Leads: Solder Lugs
  • Mounting: Flanges
  • Product Status: Active
