Same model may have multiple batches, images only for reference.

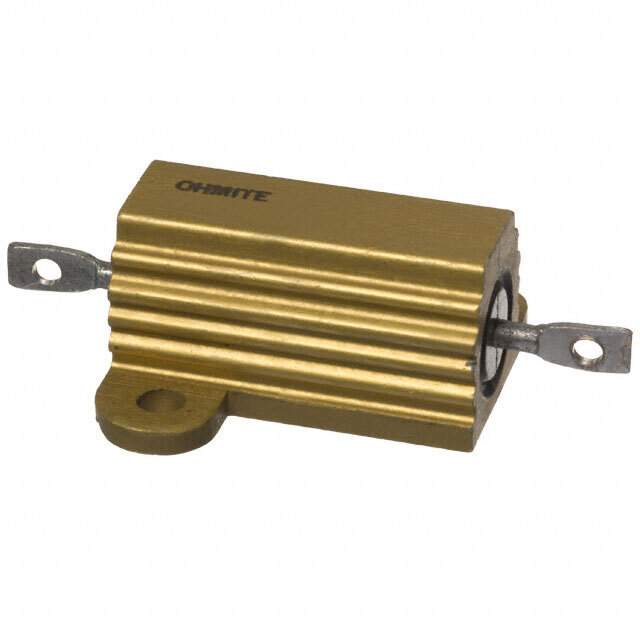

HS25 2K5 F Real Image
Same model may have multiple batches, images only for reference.

HS25 2K5 F

Part No HS25 2K5 F
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.5K OHM 1% 25W / 2.5 kOhms ±1% 25W Wirewound Chassis Mount Resistor
Datasheet
HS25 2K5 F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Resistance 2.5 kOhms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±25ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.075" L x 0.559" W (27.30mm x 14.20mm)
Height - Seated (Max) 0.583" (14.80mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1351043-HS25 2K5 F
Ultra Librarian 3D Model Ultra Librarian HS25 2K5 F CAD Model

Description

The ARCOL HS series of chassis mount resistors are designed to meet the needs of high power and voltage handling applications.

  • Resistance: 2.5 kOhms
  • Power Rating: 25W
  • Tolerance: ±1%
  • Temperature Coefficient: ±25ppm/°C
  • Composition: Wirewound
  • Coating: Aluminum
  • Package: Axial, Box
  • Size: 1.075" L x 0.559" W (27.30mm x 14.20mm)
  • Height: 0.583" (14.80mm)
  • Lead Style: Solder Lugs
  • Mounting Feature: Flanges
  • Packaging: Bulk
  • Standard Package: 40
