Same model may have multiple batches, images only for reference.

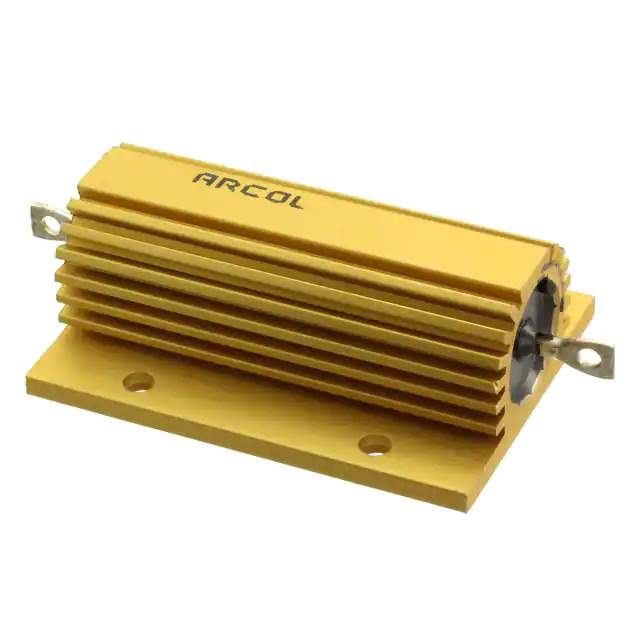

HS75 50R F Real Image
Same model may have multiple batches, images only for reference.

HS75 50R F

Part No HS75 50R F
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 50 OHM 1% 75W
Datasheet
HS75 50R F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Product Status Active
Resistance 50 Ohms
Tolerance ±1%
Power (Watts) 75W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.917" L x 1.075" W (48.70mm x 27.30mm)
Height - Seated (Max) 0.949" (24.10mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 60 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 920604-HS75 50R F
Ultra Librarian 3D Model Ultra Librarian HS75 50R F CAD Model

Description

The Ohmite 920604-HS75 50R F is a chassis mount resistor.

  • Series: ARCOL and HS
  • Power Rating: 75W
  • Resistance: 50 Ohms
  • Lead Style: Solder lug
  • Mounting: Flanges
  • Package Type: Bulk
  • Size/Dimension: 1.917" L x 1.075" W (48.70mm x 27.30mm)
  • Height: 0.949" (24.10mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Wirewound
  • Coating/Housing Type: Aluminum
