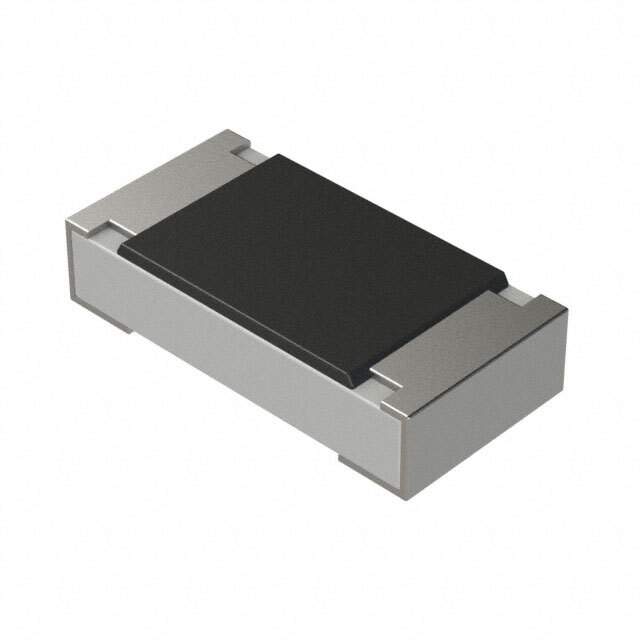

KDV06FR120ET Real Image
Same model may have multiple batches, images only for reference.

KDV06FR120ET

Part No KDV06FR120ET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES 0.12 OHM 1% 1/5W 0603 / 120 mOhms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Current Sense Metal Film
Datasheet
KDV06FR120ET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series KDV
Package Tape & Reel
Resistance 120 mOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Metal Film
Features Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337300-KDV06FR120ET
Ultra Librarian 3D Model Ultra Librarian KDV06FR120ET CAD Model

Description

The Ohmite KDV06FR120ET is a chip resistor that belongs to the resistor category.

  • Packaging: Tape & Reel
  • Standard Package: 5000
  • Tolerance: +/- 1%
  • Power (Watts): 0.2W / 1/5W
  • Resistance: 120 mOhms
  • Operating Temperature: -55°C ~ 155°C
