Same model may have multiple batches, images only for reference.

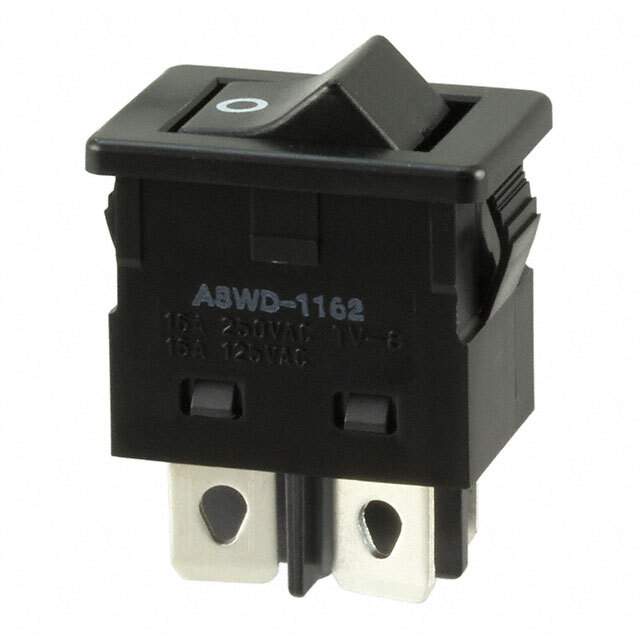

A8WD-1162 Real Image
Same model may have multiple batches, images only for reference.

A8WD-1162

Part No A8WD-1162
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V / Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Datasheet
A8WD-1162 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Omron Electronics Inc-EMC Div
Series A8W
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 22.30mm x 14.80mm
Temperature Range - Operating -25°C ~ 55°C
Mechanical Life 50,000 Cycles
Electrical Life 10,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A8WD1162,A8WD-1162-ND,Z4423,-A8WD-1162
Standard Package 100
Win Source Part Number 1177814-A8WD-1162
Ultra Librarian 3D Model Ultra Librarian A8WD-1162 CAD Model

Description

The Omron A8WD-1162 is a rocker switch with an ingress protection rating of IP67, making it dust tight and waterproof.

  • Ingress Protection: IP67
  • Voltage Rating: 125VAC
  • Current Rating: 16A (AC)
  • Switch Function: DPST, On-Off
  • Panel Cutout: Rectangular - 22.30mm x 14.80mm
  • Temperature Range: -25°C ~ 55°C
