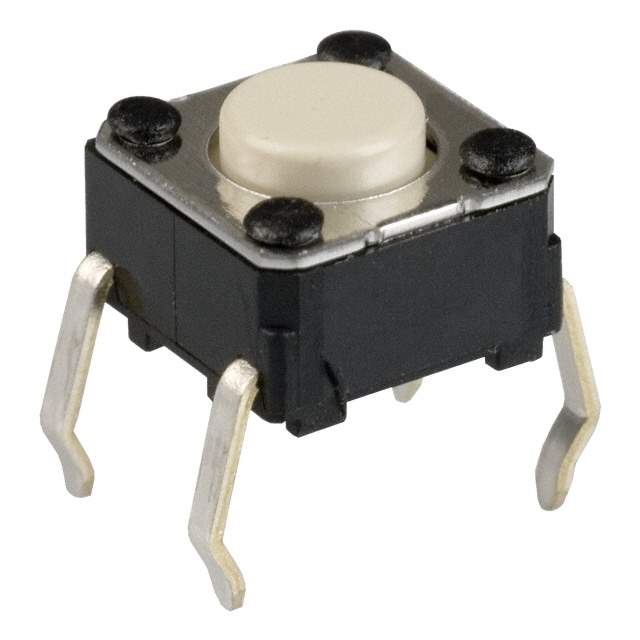

B3F-1000 Real Image
Same model may have multiple batches, images only for reference.

B3F-1000

Part No B3F-1000
Manufacturer Omron
Catalog Tactile Switches
Description Switch Tactile N.O. SPST Flat Round Button PC Pins 0.05A 24VDC 1000000Cycles 0.98N Thru-Hole Bag / Mechanical Key Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron
Win Source Part Number 1150736-B3F-1000
Manufacturer Homepage www.omron.com/index3.html
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management, Automation & Process Control
Family Name B3F
Introduction Date June 26, 1998
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian B3F-1000 CAD Model

Description

The Omron B3F-1000 switch is a high-quality switch that is widely used in various industries due to its reliability and performance.

  • Introduction date: June 26, 1998
  • Estimated EOL date: 2027
  • Compliance: halogen-free standards
  • Applications: industrial, power management, automation, and process control applications
  • Family name: B3F
  • Cross-reference: TS62R, TS61N, TS61S, and MC32861
