Products specifications

Manufacturer Omron
Win Source Part Number 1166146-D2F-L
Manufacturer Homepage www.omron.com/index3.html
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management, Automation & Process Control
Family Name D2F
Introduction Date April 01, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian D2F-L CAD Model

Description

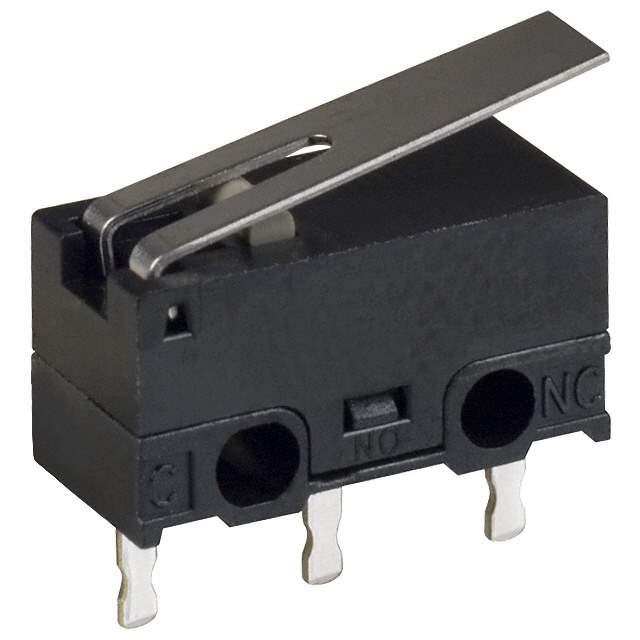

The Omron D2F-L is a subminiature snap-action switch designed for a wide variety of applications. It is known for its reliability, compact size, and long operating life. This switch is commonly used in consumer electronics, office equipment, and industrial machinery.

Applications

  • Consumer electronics: Mouse buttons, remote controls, and other handheld devices.
  • Office equipment: Printers, copiers, and scanners.
  • Industrial machinery: Limit switches, safety interlocks, and control panels.
  • Vending machines
  • Gaming devices

Features

  • Subminiature size: Allows for integration into space-constrained designs.
  • High reliability: Ensures consistent performance over a long operating life.
  • Snap-action mechanism: Provides quick and precise switching action.
  • Long operating life: Withstands millions of operations.
  • Various terminal options: Available with solder, PCB, and quick-connect terminals.
  • RoHS compliant: Meets environmental standards.

Benefits

  • Space saving: The compact size allows for integration into small devices.
  • Reliable performance: Ensures consistent operation and reduces downtime.
  • Precise switching: Provides accurate and repeatable switching action.
  • Long lifespan: Minimizes the need for replacement, reducing maintenance costs.
  • Versatile mounting options: Simplifies installation in a variety of applications.

Additional Details

The D2F-L switch has a typical operating force, release force and movement differential. The electrical ratings for the D2F-L vary depending on the specific model but generally include a voltage rating of 125 VAC/30 VDC. The operating temperature ranges from -25°C to +85°C. The contact material is typically silver alloy. Detailed specifications, including dimensions, operating characteristics, and electrical ratings, are available in the Omron datasheet.
