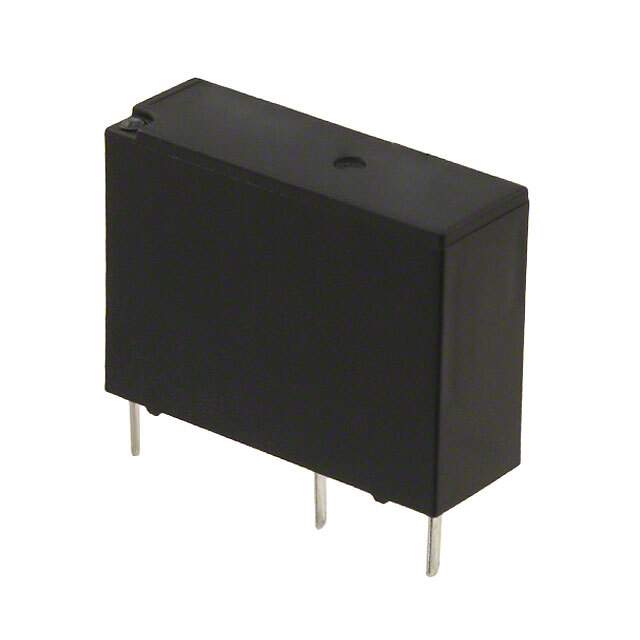

G5NB1AE12DC Real Image
Same model may have multiple batches, images only for reference.

G5NB1AE12DC

Part No G5NB1AE12DC
Manufacturer Omron
Catalog OEM Parts (F - I)
Description General Purpose Relay, G5Nb Series, Power, Non Latching, Spst, 12 Vdc, 3 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 16.7 mA
Coil Power 200 mW
Coil Resistance 720 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 3 A
Contact Resistance 100 mΩ
Depth 7.2 mm
Height 15.3 mm
Insulation Resistance 1 GΩ
Length 20.5 mm
Maximum Operating Temperature 70 °C
Min Operating Temperature -40 °C
Mount PCB
Number of Pins 4
Operate Time 10 ms
REACH SVHC Unknown
RoHS Compliant
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 250 V
Width 7.2 mm
Win Source Part Number 1018812-G5NB1AE12DC
Categories OEM Parts(F-I)
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5NB1AE12DC CAD Model

Description

The G5NB1AE12DC is a power relay manufactured by Omron that has a coil voltage of 12V. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Relay Type: Power Relay
  • Coil Voltage: 12V
  • Termination: PC Pin
  • Length: 20.5mm
  • Width: 7.2mm
  • Contact Resistance: 100 mΩ
  • Insulation Resistance: 1 GΩ
  • Coil Type: Non-Latching
  • Coil Resistance: 720 Ω
  • Coil Current: 16.7 mA
  • Contact Current Rating: 3A
  • Operate Time: 10ms
  • Mounting: PCB
  • Throw Configuration: SPST
