Same model may have multiple batches, images only for reference.

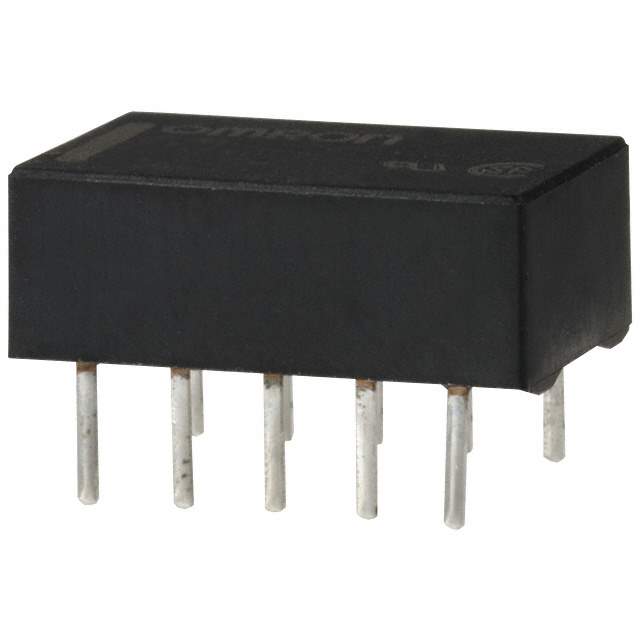

G6H-2-100-DC12 Real Image
Same model may have multiple batches, images only for reference.

G6H-2-100-DC12

Part No G6H-2-100-DC12
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 12V
Datasheet
G6H-2-100-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G6H
Packaging Tube
Part Status Obsolete(EOL)
Relay Type Telecom
Coil Type Non Latching
Coil Current 11.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 3ms
Release Time 2ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver (Ag), Gold (Au)
Coil Power 140 mW
Coil Resistance 1.03 kOhms
Operating Temperature Range -40°C ~ 70°C
Win Source Part Number 774955-G6H-2-100-DC12
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G6H-2-100-DC12 CAD Model

Description

The Omron Electronics Inc-EMC Div 774955-G6H-2-100-DC12 relay is a DPDT (2 Form C) relay with a contact material of silver (Ag), gold (Au).

  • Contact Material: Silver (Ag), Gold (Au)
  • Coil Resistance: 1.03 kOhms
  • Coil Current: 11.7mA
  • Type: Telecom
  • Coil Type: Non-Latching
  • Switching Voltage: 125VAC and 110VDC max
  • Packaging: 50 pieces
  • Part Status: Obsolete (EOL)
  • Turn On Voltage (Maximum): 9VDC
  • Turn Off Voltage (Minimum): 1.2VDC
