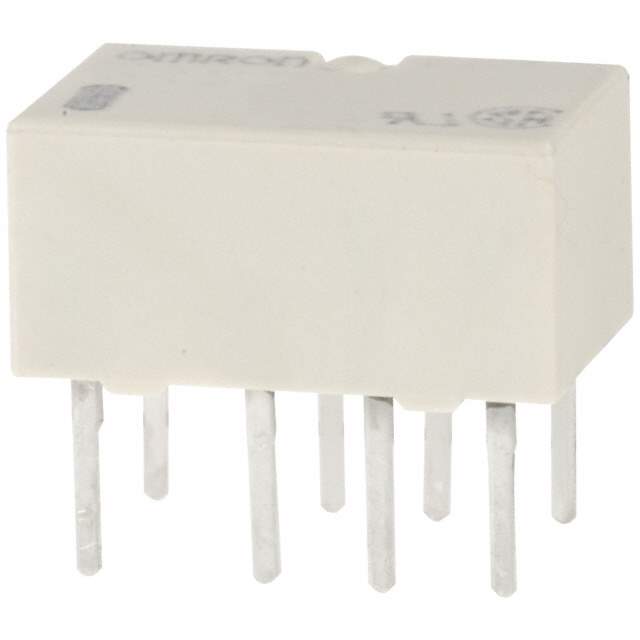

The Omron G6K-2P-DC12 is a miniature, high-sensitivity signal relay designed for telecommunications, measurement, testing equipment, and other applications where low power consumption and high reliability are critical. This relay features a DPDT (Double Pole Double Throw) contact configuration, providing versatility in switching signals.

Applications

• Telecommunications Equipment: Line cards, switching systems, and modems.
• Measurement and Testing Equipment: Signal routing in automated test equipment (ATE) and data acquisition systems.
• Security Systems: Alarm systems, access control, and intrusion detection.
• Medical Equipment: Patient monitoring systems and diagnostic devices.
• Industrial Control Systems: Low-power signal switching in programmable logic controllers (PLCs) and distributed control systems (DCS).

Features

• Miniature Size: Compact design allows for high-density mounting.
• High Sensitivity: Requires low coil power for operation.
• DPDT Contact Configuration: Provides versatile switching capabilities.
• Low Power Consumption: Reduces energy consumption in battery-powered and energy-sensitive applications.
• High Reliability: Ensures consistent performance and long life.

Benefits

• Space Savings: Compact size allows for denser board layouts.
• Reduced Power Consumption: Minimizes energy usage and heat generation.
• Versatile Switching: DPDT configuration allows for a wide range of applications.
• Improved Reliability: Ensures consistent performance and reduces maintenance costs.
• Extended Battery Life: Low power consumption extends battery life in portable devices.

Additional Details

The G6K-2P-DC12 relay is designed for through-hole mounting. It operates with a 12V DC coil voltage. Its small size and high sensitivity make it ideal for applications where space and power are limited. The relay features gold-plated contacts for reliable switching performance. It is important to adhere to the specified coil voltage and contact ratings to ensure proper operation and prevent damage. The relay is also available in surface mount packages. Consult the Omron datasheet for detailed specifications, including contact ratings, coil resistance, operating temperature range, and mechanical life expectancy.
