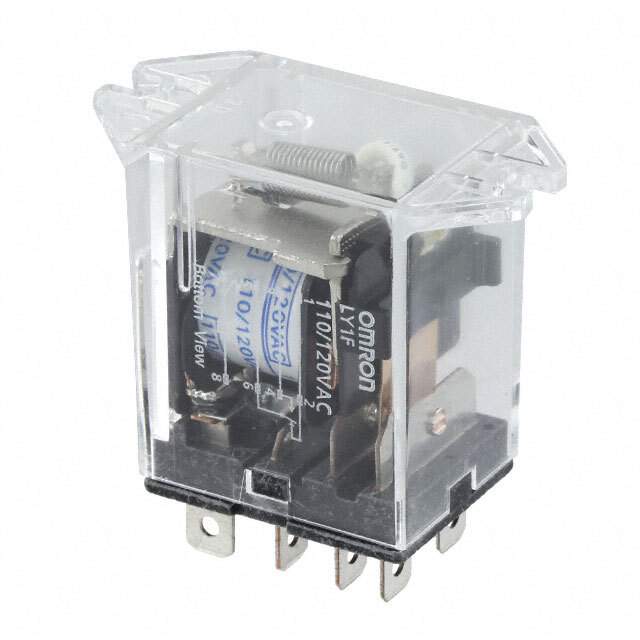

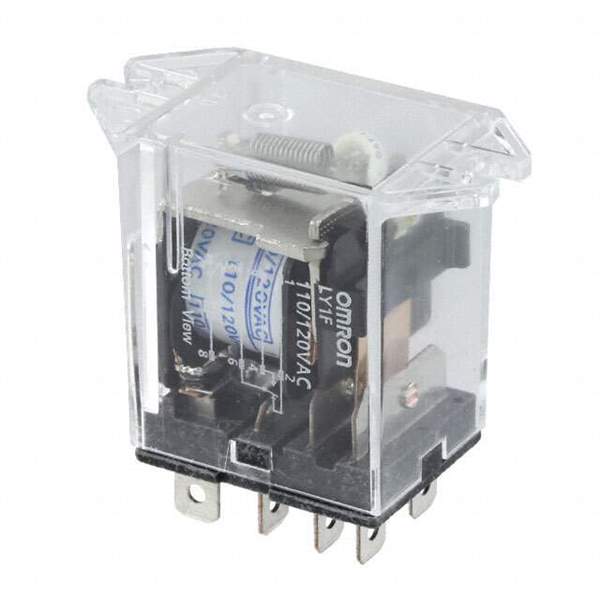

LY1F-AC110/120 Real Image
Same model may have multiple batches, images only for reference.

LY1F-AC110/120

Part No LY1F-AC110/120
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 120V  /  General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
Datasheet
LY1F-AC110/120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series LY
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 120VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 9.2 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 96 VAC
Must Release Voltage 36 VAC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -25°C ~ 55°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 4.43 kOhms
Base Product Number LY1F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0075
Other Names LY1FAC110/120,LY1FAC110120,Z782
Standard Package 50
Win Source Part Number 977811-LY1F-AC110/120
Ultra Librarian 3D Model Ultra Librarian LY1F-AC110/120 CAD Model

Description

The Omron LY series relay is a general-purpose power relay with a plug-in termination style.

  • Termination Style: Plug-In
  • Contact Form: Single Pole Double Throw (SPDT)
  • Contact Material: Silver Alloy
  • Coil Voltage: 120VAC
  • Coil Resistance: 4.43 kOhms
  • Contact Rating: 15A
  • Switching Voltage: 250VAC and 125VDC
  • Temperature Range: -25°C to 55°C
  • Release Time: 25ms
  • Application: Power relays over 2 amps
