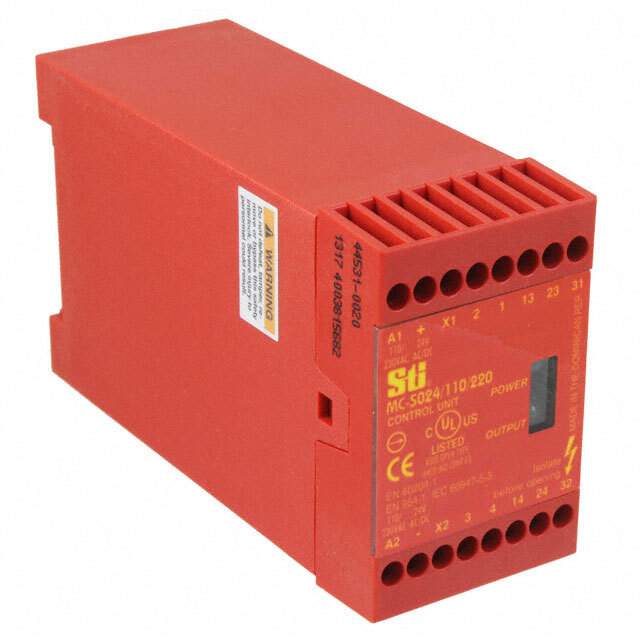

MC-S2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - Machine Safety
Mfr Omron Automation and Safety
Series MC-S-STI
Package Bulk
Controller Type Magnetic Interlock
Number of Inputs and Type 2 - Digital
Safety Outputs and Type Relay (2)
Contact Rating @ Voltage 4A @ 250VAC
Safety Category Category 3
Voltage - Supply 100/220VAC, 24VAC/DC
Mounting Type DIN Rail
Termination Style Screw Terminal
Temperature Range - Operating -10°C ~ 55°C
Ingress Protection IP40
Approval Agency CE, cUL, UL
Weight 1.3 lbs (589.7 g)
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8537.10.9160
Other Names MCS2,44531-0020,44531-0020-ND,Z3934,445310020
Standard Package 1
Win Source Part Number 1078292-MC-S2
Ultra Librarian 3D Model Ultra Librarian MC-S2 CAD Model

Description

The MC-S2 is a machine safety controller that is used for magnetic interlock.

  • Digital Inputs: Two
  • Relay Safety Outputs: Two
  • Contact Rating: 4A @ 250VAC
  • Packaging: Bulk
  • Weight: 1.3 lbs
  • Manufacturer: Omron Automation and Safety
  • Win Source Part Number: 1078292-MC-S2
