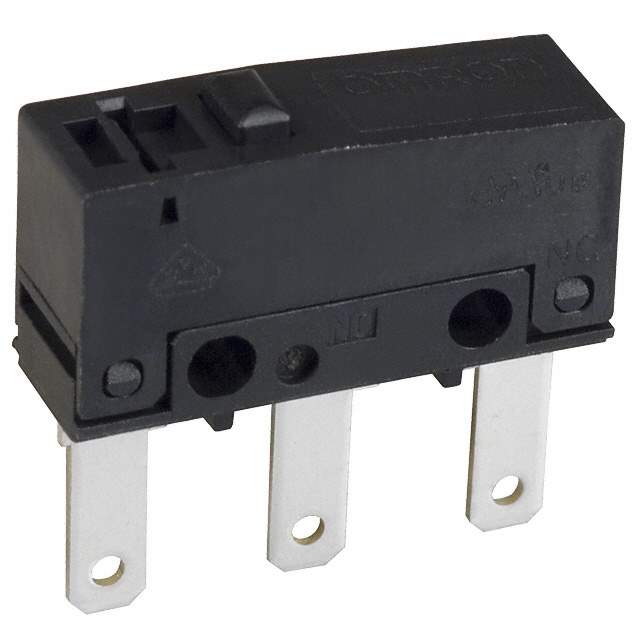

SS-01GPT

Part No SS-01GPT
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Chassis Mount
Datasheet
SS-01GPT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 153gf
Release Force 20gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01
Other Names SS01GPT,SS-01GPT BY OMZ,SS01GPTBYOMZ,SW778
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233418-SS-01GPT
Ultra Librarian 3D Model Ultra Librarian SS-01GPT CAD Model

Description

The Omron SS-P series limit switch, SS-01GPT, is a Single Pole Double Throw (SPDT) switch with On-Mom switch function and round (pin plunger) actuator type.

  • Voltage Rating: 125 V AC, 30 V DC
  • Current Rating: 100mA (AC/DC)
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Ingress Protection: IP40
  • Operating Temperature Range: -25°C to 85°C
  • Differential Travel: 0.006" (0.15mm)
  • Overtravel: 0.015" (0.4mm)
  • Operating Position: 0.330" (8.4mm)
  • Release Force: 20gf
  • Operating Force: 153gf
  • Mounting Type: Chassis Mount
  • Packaging: Tray
