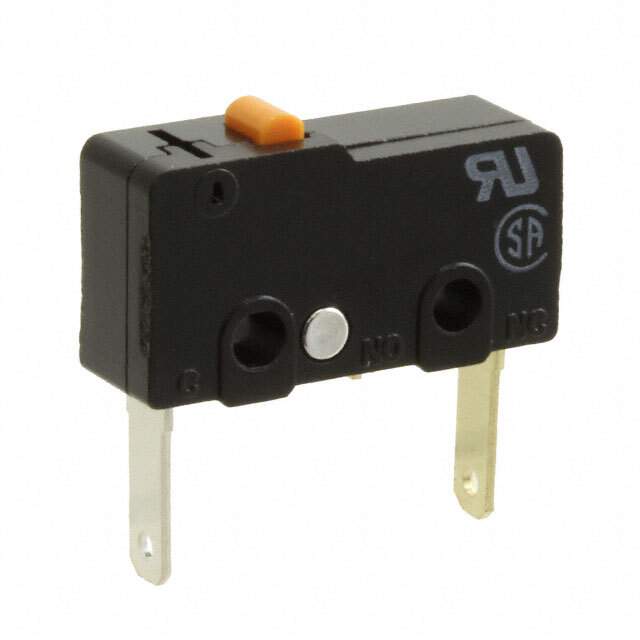

SS-5-2T Real Image
Same model may have multiple batches, images only for reference.

SS-5-2T

Part No SS-5-2T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 5A 125V  /  Switch SPST-NC Chassis Mount
Datasheet
SS-5-2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS52TBYOMI,-SS-5-2T,Z4566,SS-5-2T,SS52T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233528-SS-5-2T
Ultra Librarian 3D Model Ultra Librarian SS-5-2T CAD Model

Description

The SS series limit switch is a high-quality switch from Omron Electronics Inc-EMC Div that is designed to provide reliable performance for a range of applications.

  • Mounting Type: Chassis Mount
  • Termination Style: Quick Connect 0.110" (2.8mm)
  • Circuit: SPST-NC
  • Switch Function: On-Mom
  • Actuator Type: Round (Pin Plunger)
  • Electrical Life: 200,000 Cycles
  • Mechanical Life: 30,000,000 Cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC
  • ECCN: EAR99
  • Current Rating: 5A (AC)
  • HTSUS: 8536.50.7000
