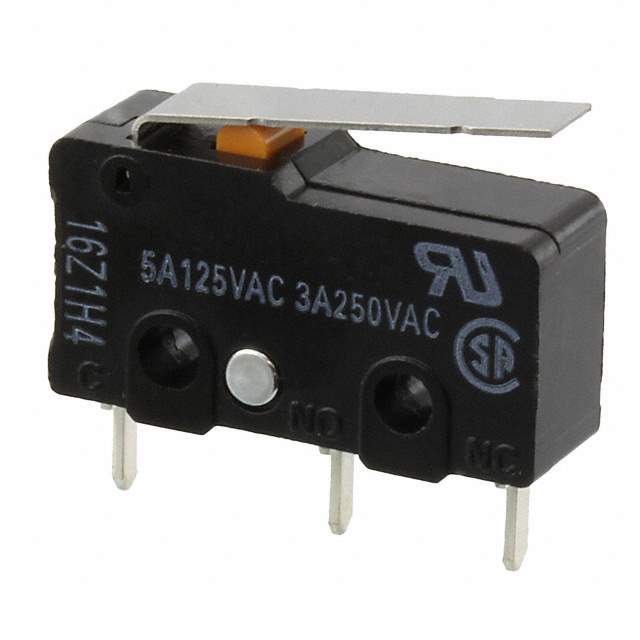

SS-5GL-FD1 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL-FD1

Part No SS-5GL-FD1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V  /  Switch SPDT Through Hole, Right Angle
Datasheet
SS-5GL-FD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GLFD1
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233462-SS-5GL-FD1
Ultra Librarian 3D Model Ultra Librarian SS-5GL-FD1 CAD Model

Description

The Omron SS-5GL-FD1 is a limit switch that has a SPDT circuit and an on-mom switch function.

  • Voltage Rating: 125V AC
  • Current Rating: 5A (AC)
  • Mounting Type: Through-Hole, Right Angle
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
  • Classification: EAR99
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Actuator Type: Lever, Straight
  • Operating Force: 16gf
