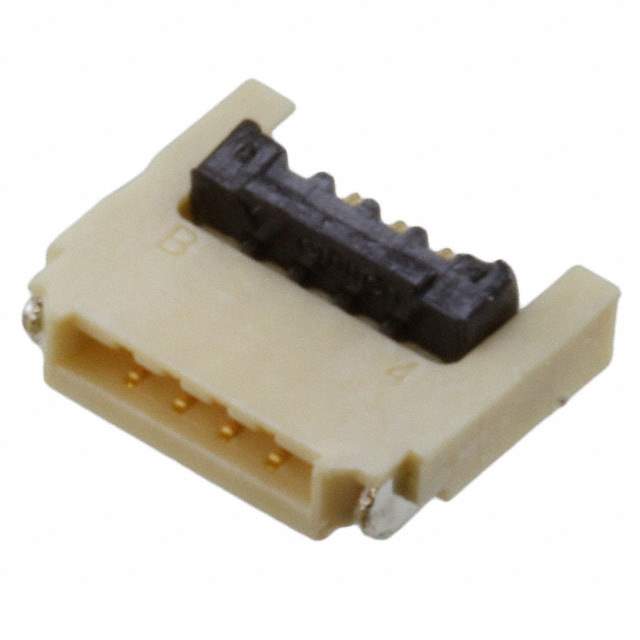

XF2U-0415-3A Real Image
Same model may have multiple batches, images only for reference.

XF2U-0415-3A

Part No XF2U-0415-3A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 4POS 0.50MM R/A
Datasheet
XF2U-0415-3A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 4
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 5.9μin (0.15μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Win Source Part Number 036632-XF2U-0415-3A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF2U-0415-3A CAD Model

Description

The Omron XF2U-0415-3A is a rotary lock and backlock connector with contacts on the top and bottom.

  • Locking Feature: Rotary lock and backlock
  • Contact Position: Top and Bottom
  • Mounting Style: Surface Mount, Right-Angle
  • Pitch: 0.020 inches
  • Height Above Board: 0.036 inches
  • Cable End Type: Tapered
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Housing Color: Natural
  • Category: Connectors and Interconnects
  • Supply and Demand Status: Balanced
