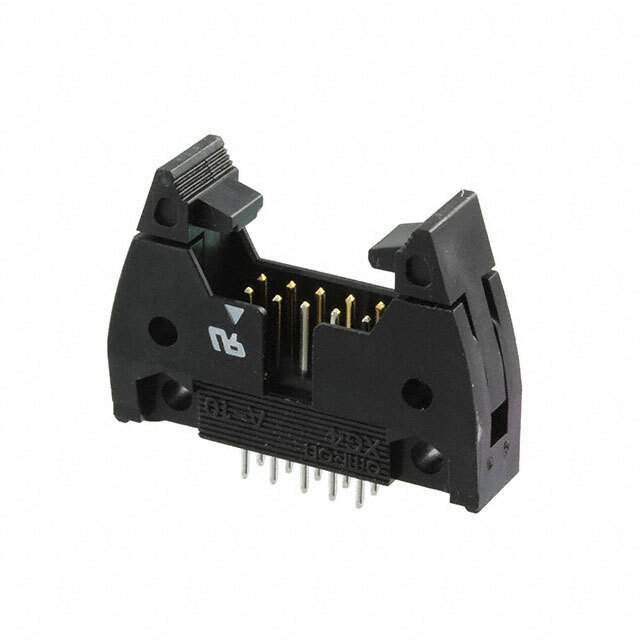

XG4A-1032 Real Image
Same model may have multiple batches, images only for reference.

XG4A-1032

Part No XG4A-1032
Manufacturer Omron
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A1032,Z5267,XG4A-1032-ND,XG4A-1032 BY OMZ,XG4A1032BYOMZ
Standard Package 90
Win Source Part Number 1000785-XG4A-1032
Ultra Librarian 3D Model Ultra Librarian XG4A-1032 CAD Model

Description

The XG4A-1032 is a rectangular connector that is used for board to cable/wire connections.

  • Application: board to cable/wire connections
  • Pitch-Mating: 0.100 inches
  • Contact Finish-Mating: gold
  • Contact Rating: 3A @ 300V
  • Packaging: bulk
  • Standard Package: 90
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Win Source Part Number: 1000785-XG4A-1032
