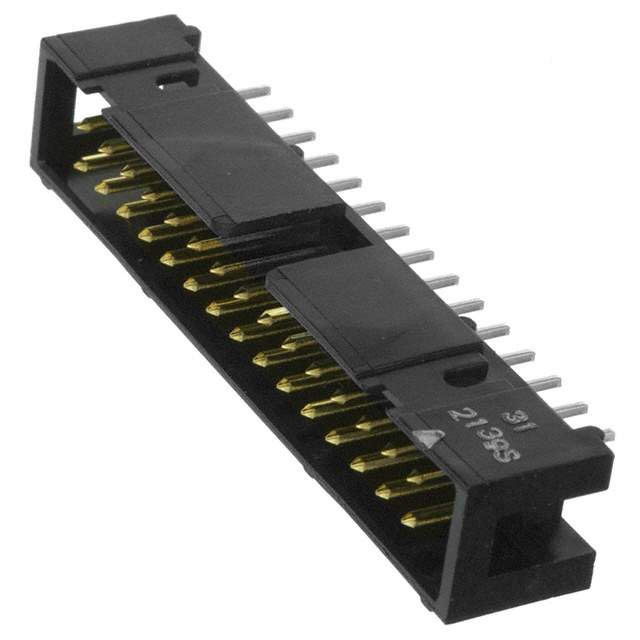

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Gender Male
Contact Material Brass
Contact Plating Gold
Contact Resistance 20 mΩ
Current Rating 3 A
Gender Male
Housing Material PBT
Max Current Rating 3 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 300 V
Min Operating Temperature -55 °C
Mount Through Hole
Number of Contacts 30
Number of Positions 30
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.54 mm
Termination Solder
Voltage Rating 300 V
Voltage Rating (AC) 300 V
Win Source Part Number 991214-XG4C-3031
Categories OEM Parts(T-Z)
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian XG4C-3031 CAD Model

Description

The Omron 991214-XG4C-3031 is a black male pin connector with a pitch of 2.54 mm and 30 positions.

  • Pitch: 2.54 mm
  • Positions: 30
  • Rows: 2
  • Row Spacing: 2.54 mm
  • Termination: Solder
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating: 300 V
  • Current Rating: 3 A
  • Contact Resistance: 20 mΩ
  • Housing Material: PBT
  • Orientation: Straight
  • RoHS: Compliant
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -55 °C
  • Mounting: Through-Hole
  • Category: OEM Parts(T-Z)
  • Supply and Demand Status: Shortage
