XG4M-1630-T

Name: XG4M-1630-T
Brand: Omron
SKU: 1000806
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XG4M-1630-T
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS IDC 28AWG GOLD / 16 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	16
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Ribbon Cable
Wire Gauge	28 AWG
Features	Feed Through, Polarizing Key, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	5.90µin (0.150µm)
Color	Black
Base Product Number	XG4M
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	XG4M1630TBYOMZ,2266-XG4M-1630-T,XG4M1630T-ND,XG4M1630T,OR976,XG4M-1630-T BY OMZ
Standard Package	120
Win Source Part Number	1000806-XG4M-1630-T
Ultra Librarian 3D Model	Ultra Librarian XG4M-1630-T CAD Model

Alternative Products

Description

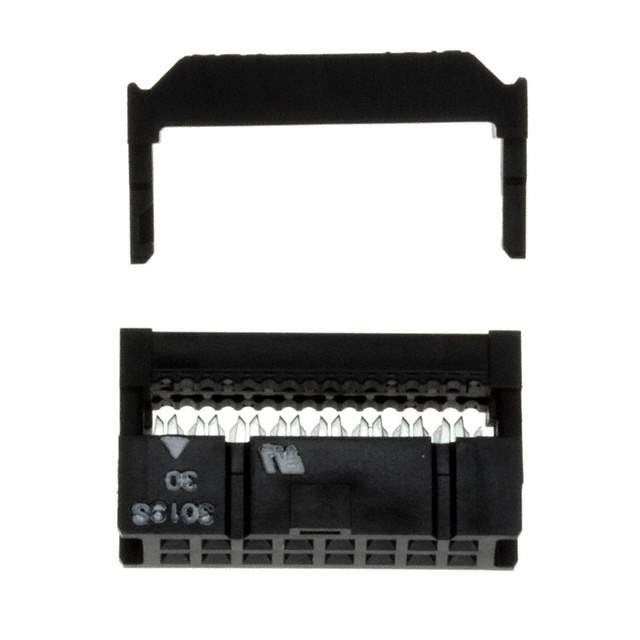

The Omron XG4M-1630-T is a 16-position female socket receptacle connector with a feed-through, polarizing key, and strain relief.

Application: board to cable/wire
Pitch: 0.100 inches (2.54mm)
Row Spacing: 0.100 inches (2.54mm)
Contact Finish: gold finish on mating contacts
Package: tray
Temperature Range: -25°C to 70°C
Material: plastic
Shielded: unshielded
Cable Termination: IDC
Material Flammability: UL94 V-0 rated
